Leica NA724 Automatic Level £459.60 Detailed Description
This automatic level features 'best in class' optics that enable you to always work as precisely as possible, even in twilight. What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in reliability and accuracy at an extremely reasonable price.
Leica NA724 - 24x telescopic magnification for improved accuracy. Reliability and Robustness for the demanding construction user.
| Technical Data | NA720 | NA724 | NA728 | NA730 | NA730 + |
| Accuracy | |||||
| Per km double run | 2.5 mm | 2 mm | 1.5 mm | 1.2 mm | 0.7 mm |
| Single measurement – Target distance 30m | 1.5 mm | 1.2 mm | 1 mm | 0.8 mm | 0.4 mm |
| Compensator | |||||
| Setting accuracy | < 0.5" | < 0.5" | < 0.3" | < 0.3" | < 0.3" |
| Working range | ± 15' | ± 15' | ± 15' | ± 15' | ± 15' |
| Environmental | |||||
| Impact standard | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 | ISO 9022-33-5 |
| Resistance to water and dust ingres | IP57 | IP57 | IP57 | IP57 | IP57 |
| Temperature Range | |||||
| Operation | -20° to +50°C | -20° to +50°C | -20° to +50°C | -20° to +50°C | -20° to +50°C |
| Storage | -40° to +70°C | -40° to +70°C | -40° to +70°C | -40° to +70°C | -40° to +70°C |
| Dimensions & Weight | |||||
| Dimensions | 19x12x12 cm | 19x12x12 cm | 21x12x12 cm | 21x12x12 cm | 21x12x12 cm |
| Weight | 1.6 kg | 1.6 kg | 1.7 kg | 1.7 kg | 1.7 kg |
Features & Benefits
Technical Specification
Telescope Magnification (x)
24
Level Accuracy - Double run per KM (mm)
2
Nitrogen-filled
Yes
What's In The Box
Leica NA724 Automatic Level
Carry Case
User Manual
Calibration Certificate - 1 Year
Related products

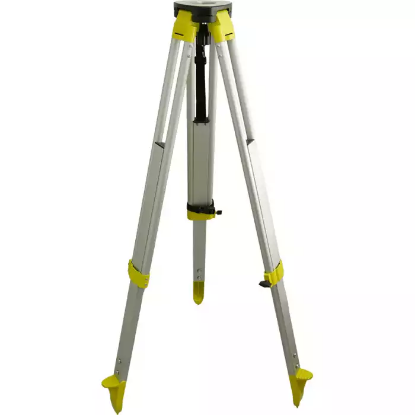

In stock- Aluminium tripod
