Rail Geometry

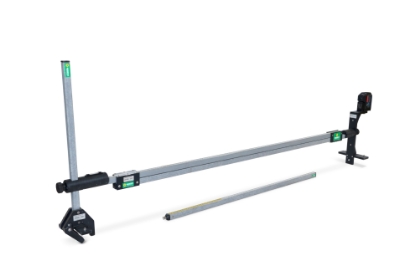

Accurate relative (transfer) – Levels from ±1mm from 1700mm to 2800mm
True horizontal measurements – 6ft/10ft measurements
Fully non-conductive – Allowing measurements over 3rd/4th conductor rails
Relative level readings – –300mm to +175mm without the need to turn or reset the gauge

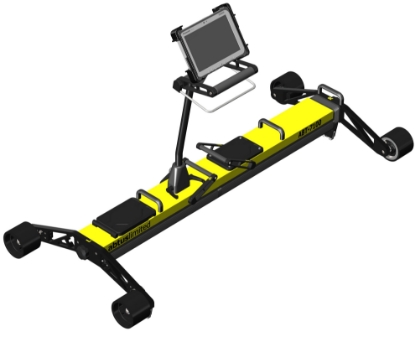

The ABT7100 Track Geometry Trolley records track gauge, cant, twist, gauge difference, gauge average and distance. It features GPS positioning as well as providing the user with the opportunity to flag track defects whilst recording.

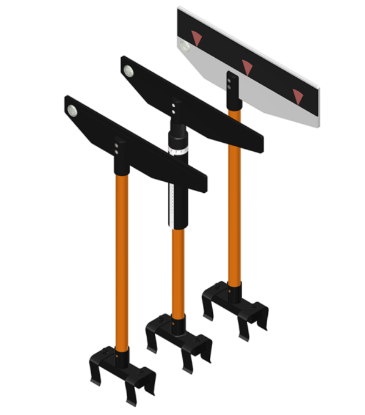

The Abtus ABT4060 Sighting Board set is a popular, quick and accurate way to measure vertical alignment, particular suitable for repairing and lifting in these areas of subsidence.
PADS No: 0039/029821

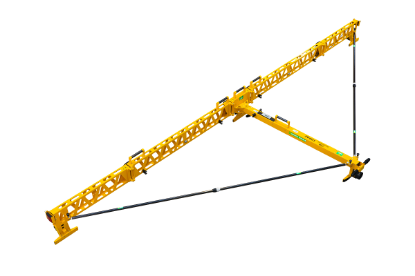

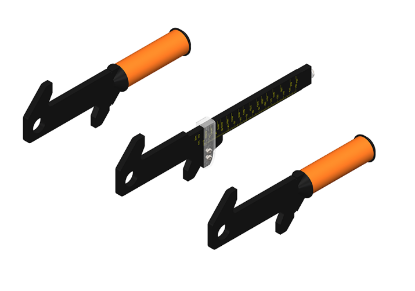

Directly measures Versine, no calculation required
