    Aluminium 2-Way Telescopic Tripod

    SKU: 030-10321

    The 2-way telescope tripod enables both normal and overhead scanning.

    Back

    £1424.40

    In stock
    Picture of Aluminium 2-Way Telescopic Tripod Aluminium 2-Way Telescopic Tripod £1424.40

    Detailed Description

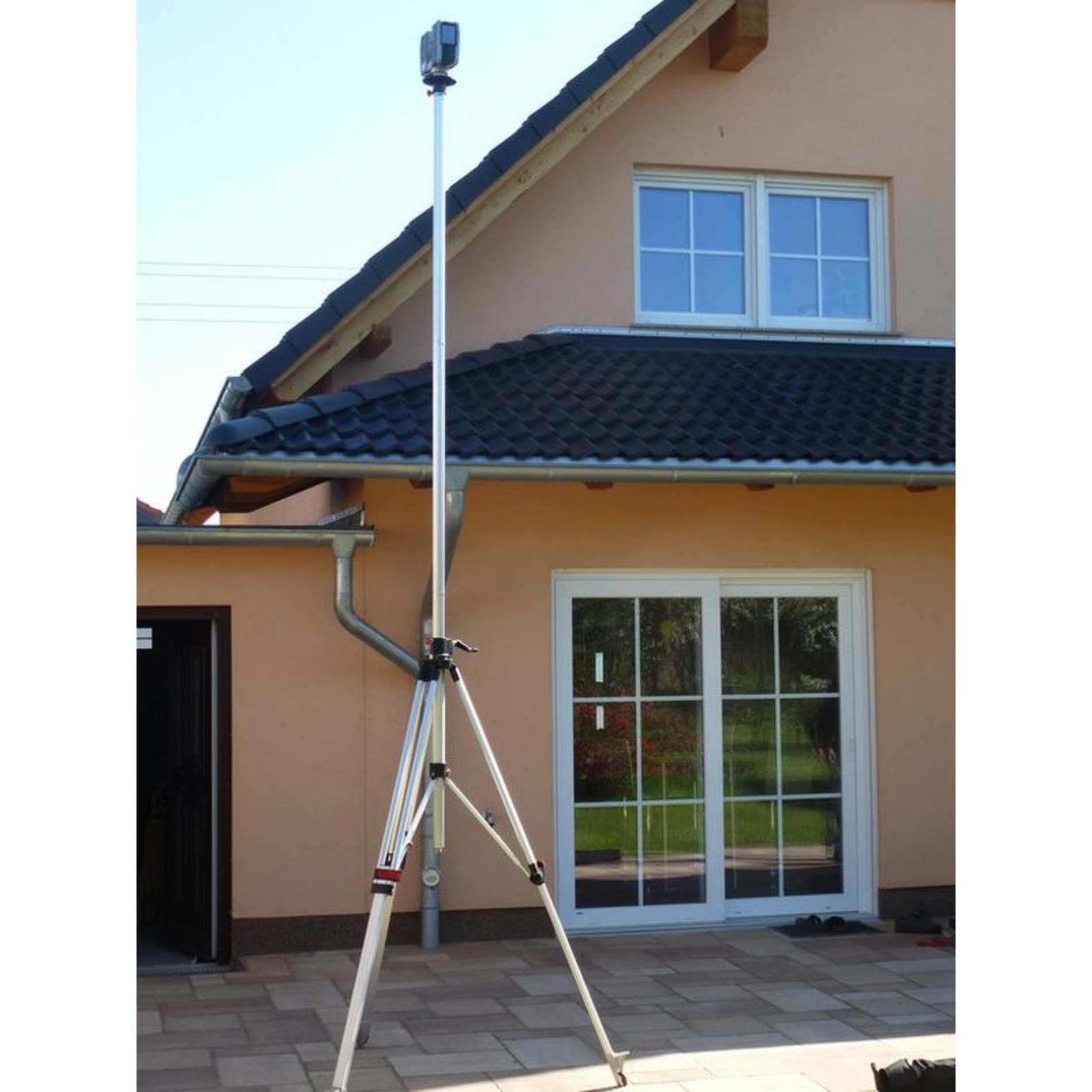

    A flexible tripod so you can raise your scanner upward or wind it down. The tripod allows not only scanning to a height of 4.00m, but also overhead scanning of shafts, etc.

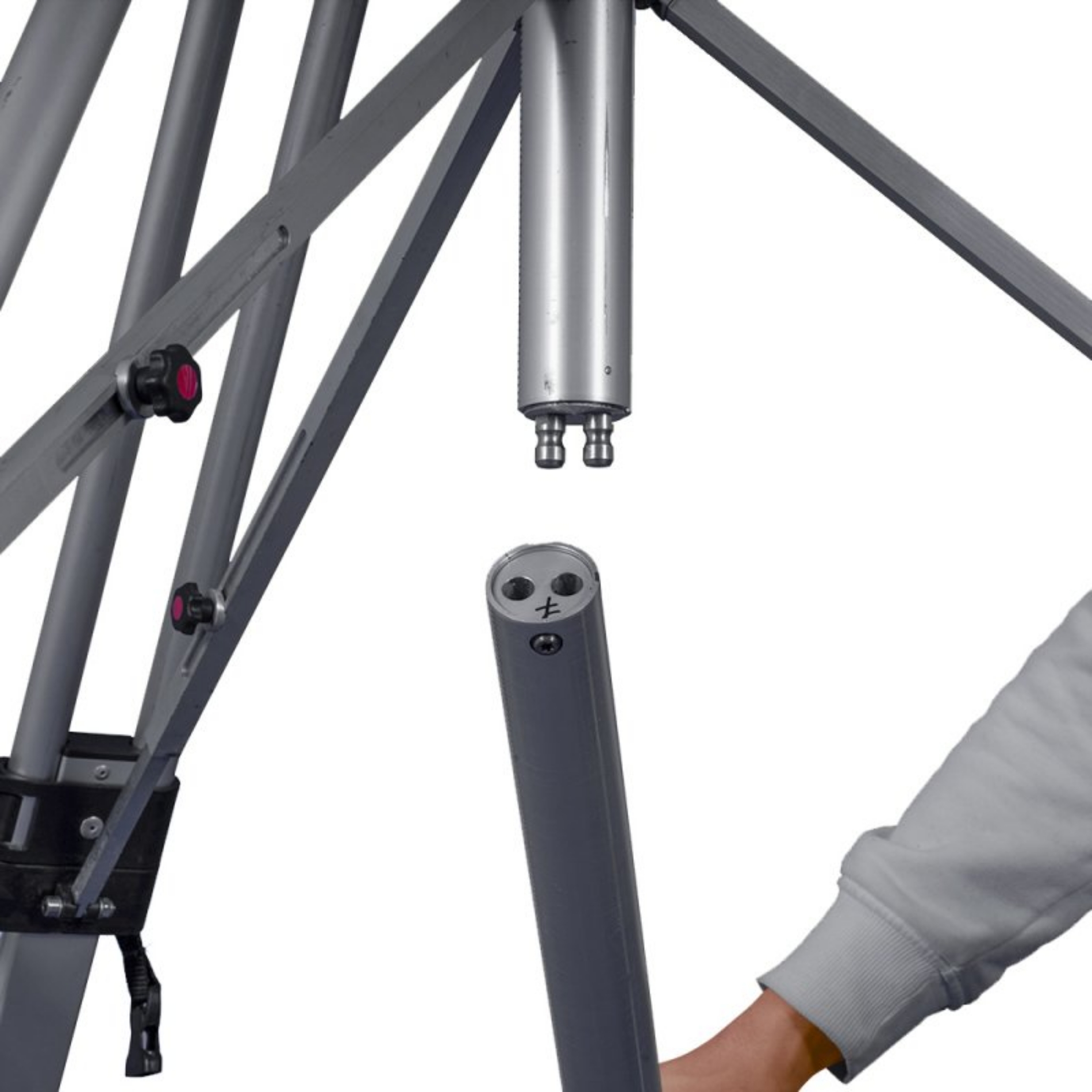

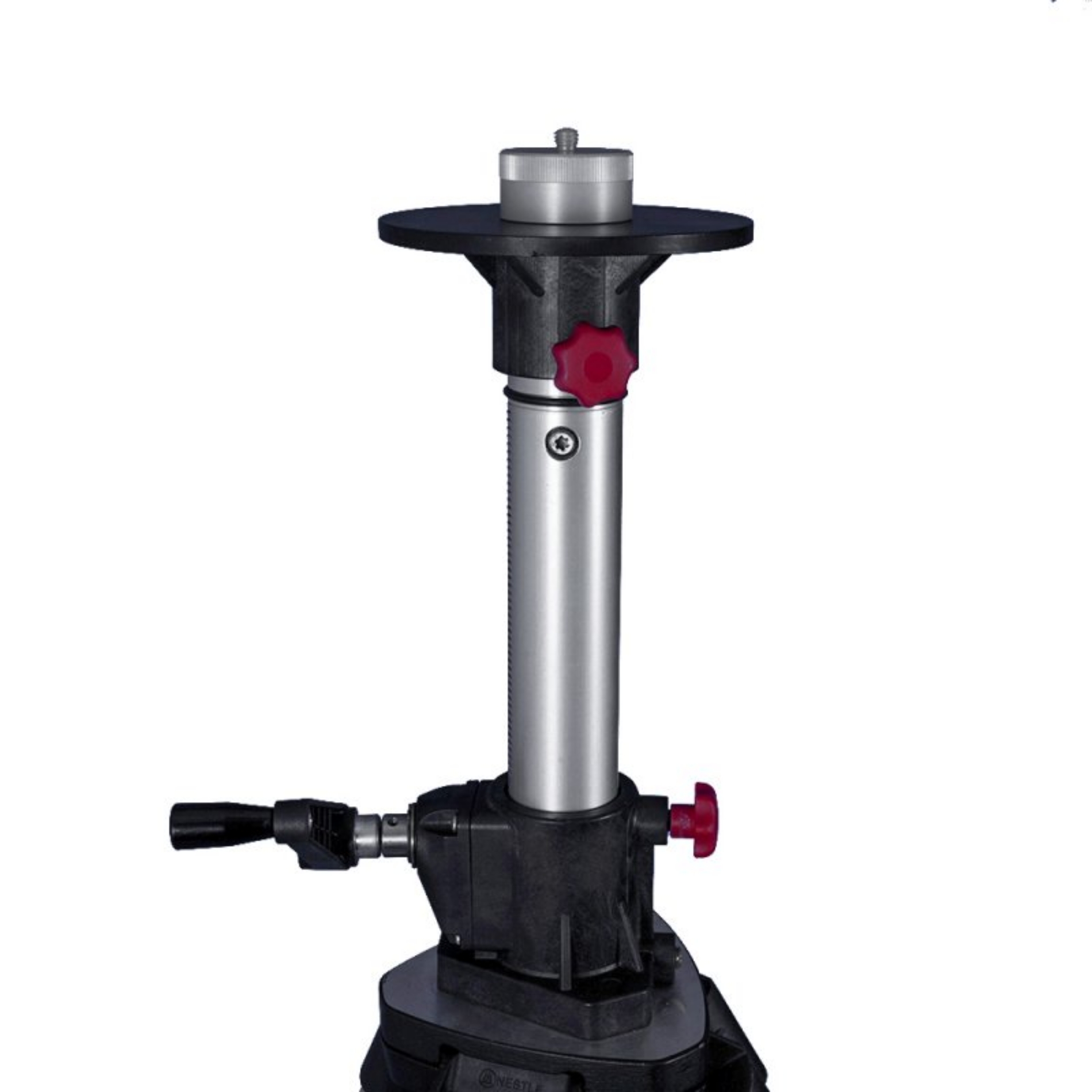

    The main rod has a support plate with a 5/8 inch connection. Depending on the measuring task, the support plate can be connected upright or head first. Then, the 4 provided extension tubes are inserted at the further end and secured. Thus, you can crank your scanner upwards or downwards on and on.

    The 3/8 inch adapter included in the delivery allows using the tripod with FARO Focus3D, Focus3D X 330 and Trimble TX5.

    Designated use:

    • Scanner usable over several heights - without assembly, disassembly and modification
    • Enlargement of the possible scanner positions
    • Overhead scanning

    Features & Benefits

    Product characteristics - 2-way telescope tripod:

    • tripod: 5/8 inch connection; adapter for 3/8 inch connection is included in the delivery
    • indirect crank drive with enhanced gear unit
    • The crank drive can be operated by means of a crank or a screwdriver.
    • anti-twist geared column
    • additional leg braces for more stability
    • solid and quick locking mechanism
    • spirit level
    • set of shoes for tripod can be used on various surfaces
    • minimum effective depth: approx. -4.50 m (177.2 in) below the earth's surface
    • maximum useful height: approx. 4.00 m (157.5 in)
    • transport length: approx. 1.30m (51.2 in)
    • weight: approx. 8,5 kg
    • flat support plate with ø 110 mm
    • During long-term usage, the scanner's weight should not be higher than 20kg.
    • 4 extension tubes (each 1m (39.4 in)) in a robust transport case included
    • suited for all scanners with 5/8" and 3/8" connection

    Technical Specification

    Document Download

    What's In The Box

    • 1 aluminum telescope tripod with 5/8 inch
    • 4 extension tubes in a robust transport case
    • 1 crank for manual operation
    • 1 bit for comfortable handling of the tripod by means of a screwdriver
    • special screwdriver for securing the single tubes
    • 1 3/8 inch adapter
