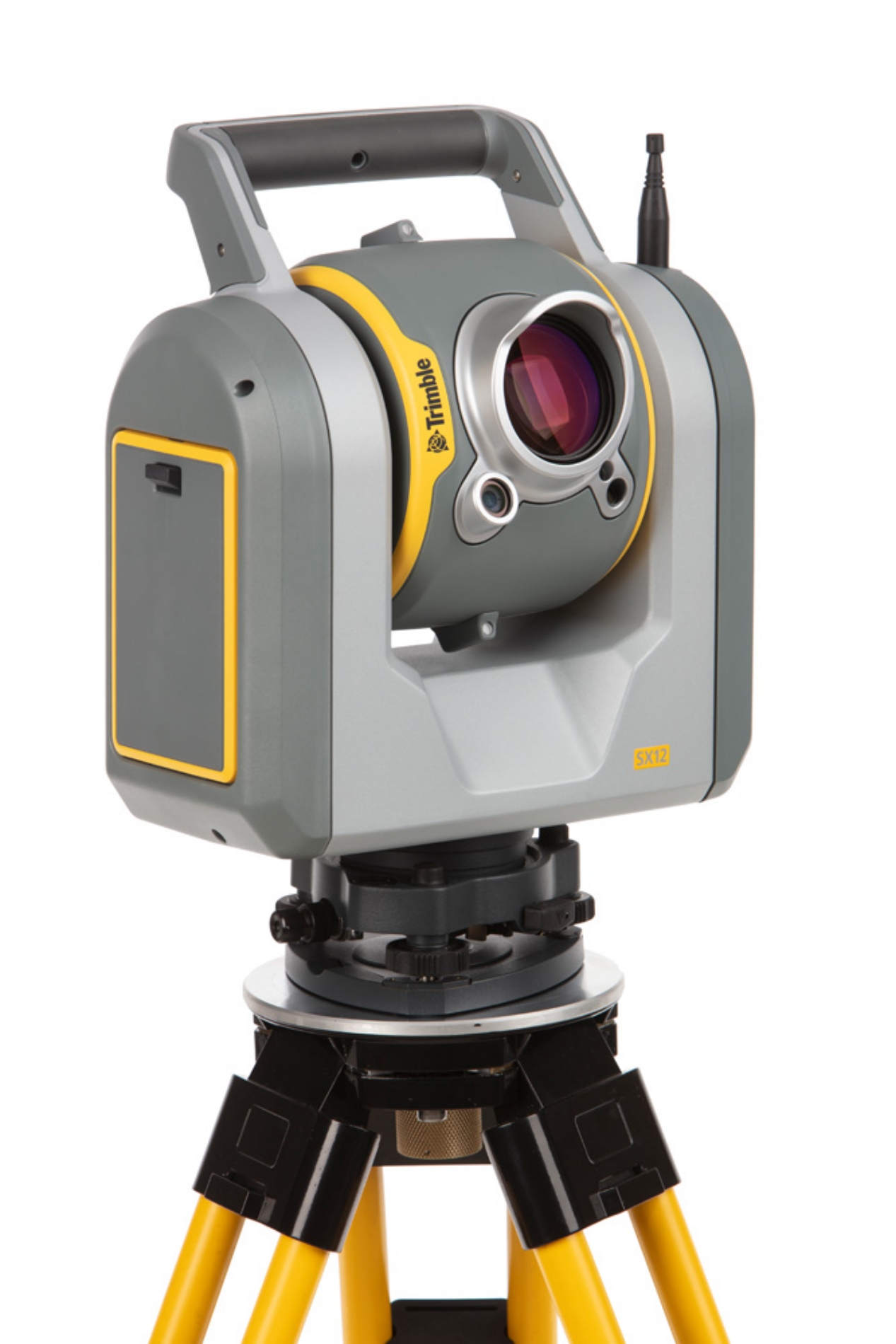

Trimble SX12 Scanning Total Station Detailed Description
Built for seamless workflow integration and faster results in the field, the Trimble SX12 combines innovative technology with intuitive functionality to maximise efficiency.
- Collect survey data, imagery and high speed scans easily with Trimble Access Field Software and the SX12s Lighting 3DM.
- Process with Trimble Business Center or Realworks Office Software for more advanced scan processing
- Visualise and share projects withstakeholders using web-based Trimble Clarity
- High accuracy total station, high quality scan data
- Quick Data Capture, even at long range
- Vivid, eye-safe laser pointer
- Simple navigation and documentation with Trimble VISION™ camera system
Features & Benefits
- High accuracy total station at 1" accuracy
- 1.5 mm scan range noise at 200m
- Green, focusable 3mm diameter laser pointer spot at 50mm
- 26.6 kHz scan measurement rate, up to 600m
- 1.6 s total station measuring time in prism mode
- 1.2 s total station measuring time in DR mode
- Trimble Vision Camera system: Three integrated and calibrated cameras in the telescope
Technical Specification
Inst Reflectorless Range
800m
Max. Range (metres)
400
Angular Accuracy (")
1
Total Station Type
Robotic
