Monitoring Accessories

The GEO-XR single point rod settlement system is used to monitor sub-surface settlement or heave of ground.

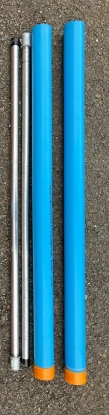

The system comprises a series of inner steel rods and plastic outer sleeves together with plates when positioned on ground before fill or Borros type anchors when used in boreholes.

Sunbelt Rentals 1.3m Monitoring / Control Post. A solid, fixed control post manufactured from steel and powdercoated Green. Designed for long term construction projects, monitoring campaigns and survey stations.

Twist drill, Ø 12mm / Ø 31mm, drill depth 48mm

Sunbelt Rentals 1.3m Monitoring / Control Security Post and Cage. A solid, fixed control post from steel and powdercoated Green comes with secure and stengthened security cage. Designed for long term construction projects, monitoring campaigns and survey stations.

A solid designed wall bracket with 400mm Length arms (distance from wall) made from 50mm angled steel. A square 200 x 200mm x 10mm plate is supplied with a fixed (non-rotatable) 5/8” screw.

All parts are clearly burred at the edges and powder coated red making the bracket well protected against corrosion and highly visible. Mounting is carried out using four heavy duty M10 anchor bolts (fixings included). Four plating pieces are welded on the back side of the wall attachments to guarantee highly reliable positioning even on rough surfaces.

500mm, 600mm and 1000mm length (distance from wall) versions available.

Delivered in a disassembled condition.

Metric Red Stepped Feeler Gauge 1mm-15mm

Can be used in conjunction with Pelgage VoidMeters and to mesaure other gaps / cracks
