Monitoring Accessories
Aluminum housing for wall mounting mini prism during long term monitoring projects.
Size: 150 x 30 x 40mm. 2 No 8mm countersunk fixing holes.
Prism is included.
Galvanised Steel monitoring brackets for attaching CMP104, GMP104 and GMP004 to the rail.
A tightly sprung bracket with toothed underside provides a non-slip attachment to the rail.

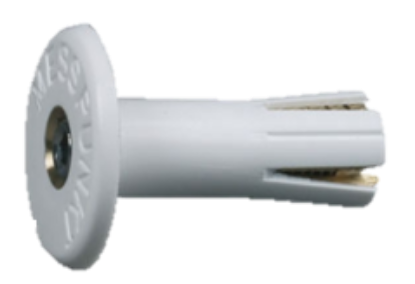

11R2-40 Wall Anchor
A brass expansion sleeve with a PVC plastic coating for high visibility. M8 female thread. Head diameter: 30mm. Length: 40mm. Shank diameter: 12mm.
11R2-30W Wall Anchor
A brass expansion sleeve with a PVC plastic coating for high visibility. M8 female thread. Head diameter: 30mm. Length: 30mm. Shank diameter: 12mm.

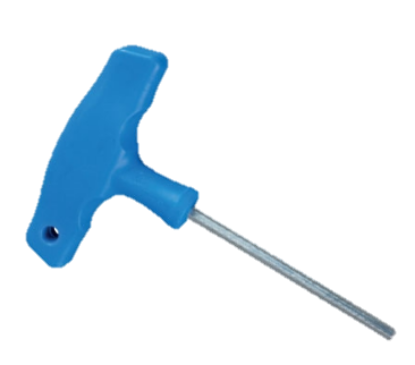

11R2-ST Allen key for fixing 11R-bolts
The GEO-XR single point rod settlement system is used to monitor sub-surface settlement or heave of ground.
The system comprises a series of inner steel rods and plastic outer sleeves together with plates when positioned on ground before fill or Borros type anchors when used in boreholes.
