Geosense GEO-XR - Rod Settlement System

The GEO-XR single point rod settlement system is used to monitor sub-surface settlement or heave of ground.

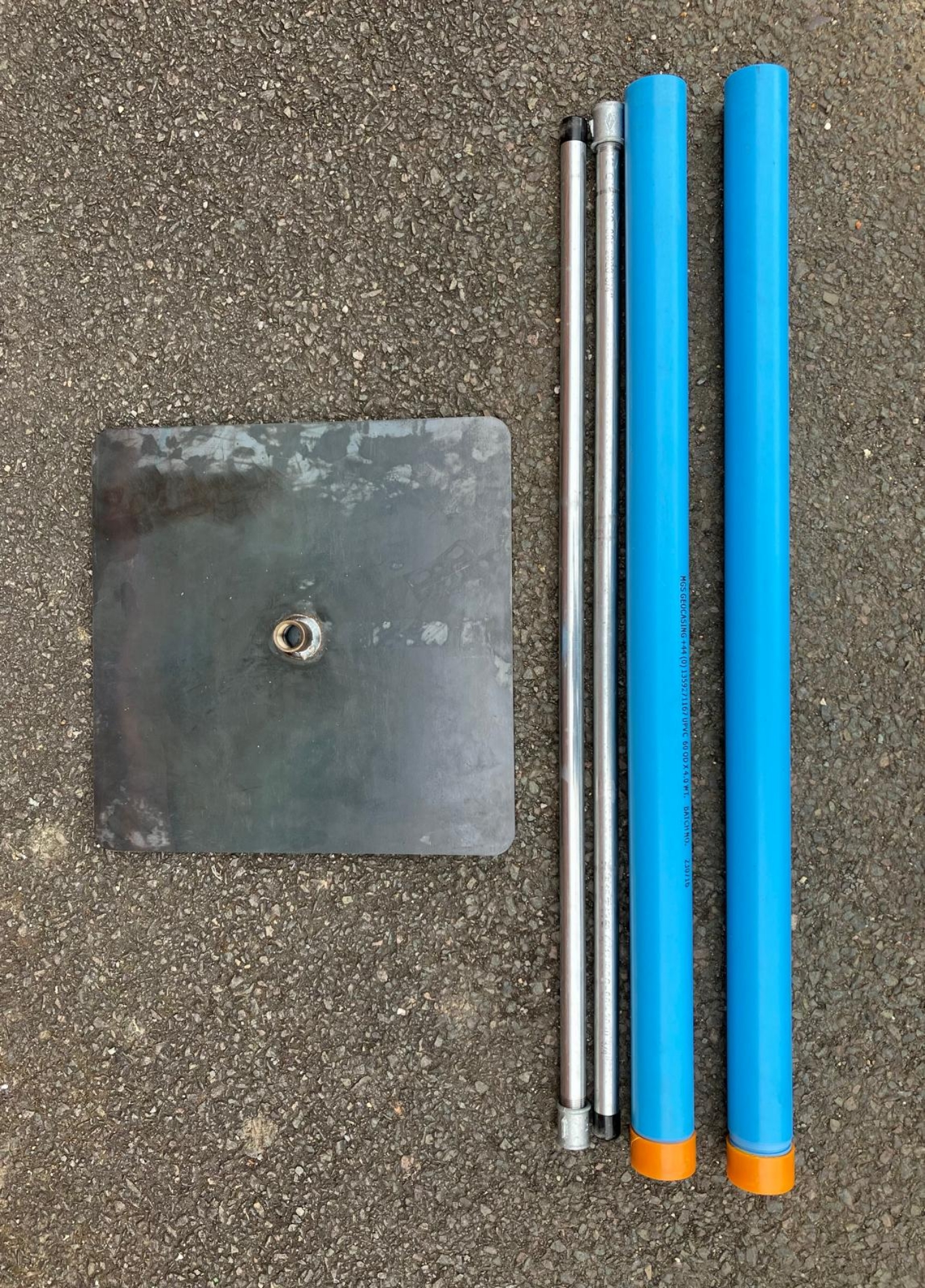

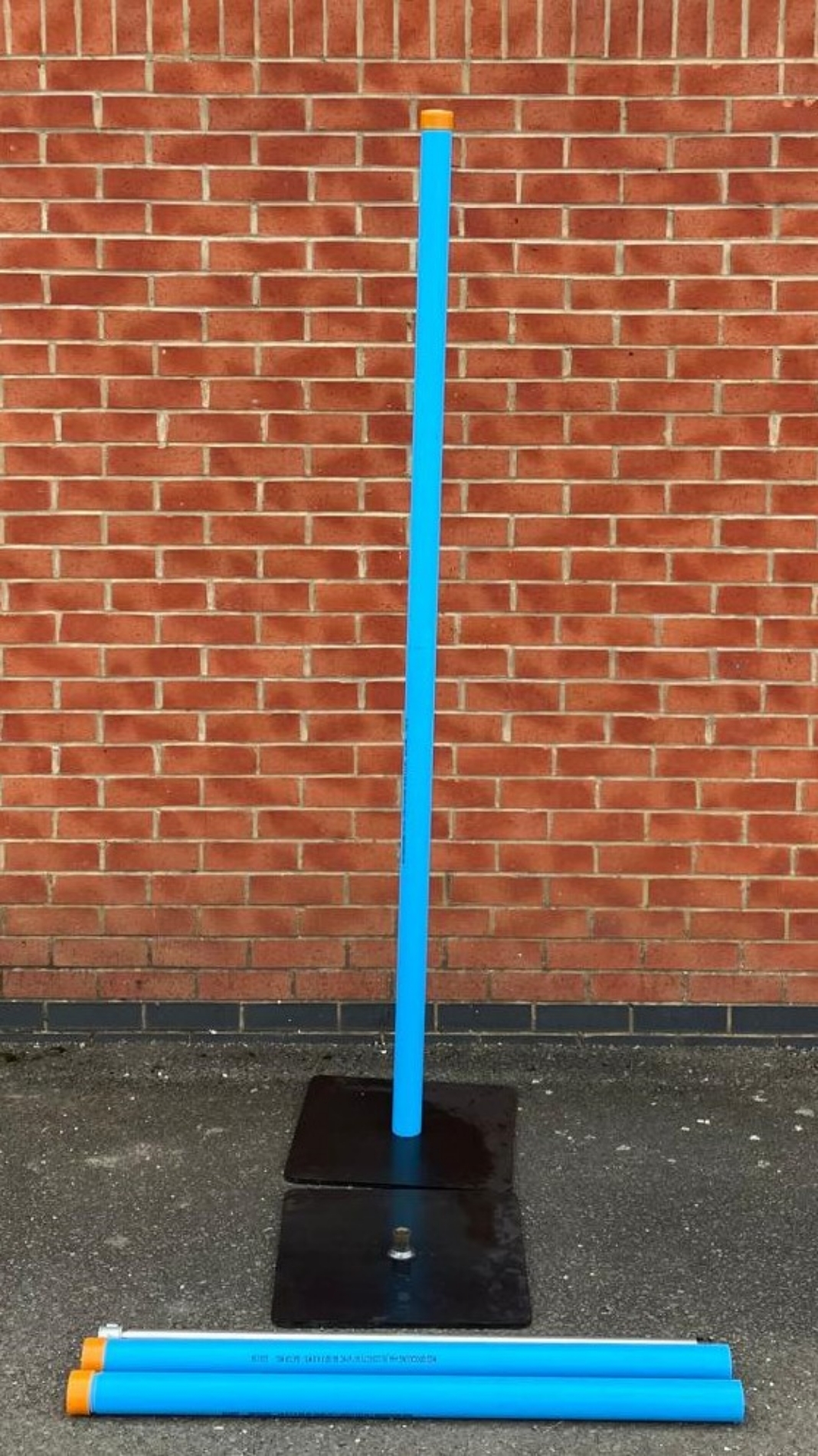

The system comprises a series of inner steel rods and plastic outer sleeves together with plates when positioned on ground before fill.

The inner steel rod is made from heavy duty 1metre lengths of 25mm outside diameter with a 3/4” BSPM thread with external socket.

The outer plastic sleeves in 1metre lengths  can be 60mm with flush threads so that the inner and outer rod can be extended together.

A square thick steel plate with a 3/4” BSPF socket welded onto it allows the datum plate to be placed and the first inner rod connected. Outer sleeves are placed over the steel rods as filling occurs.

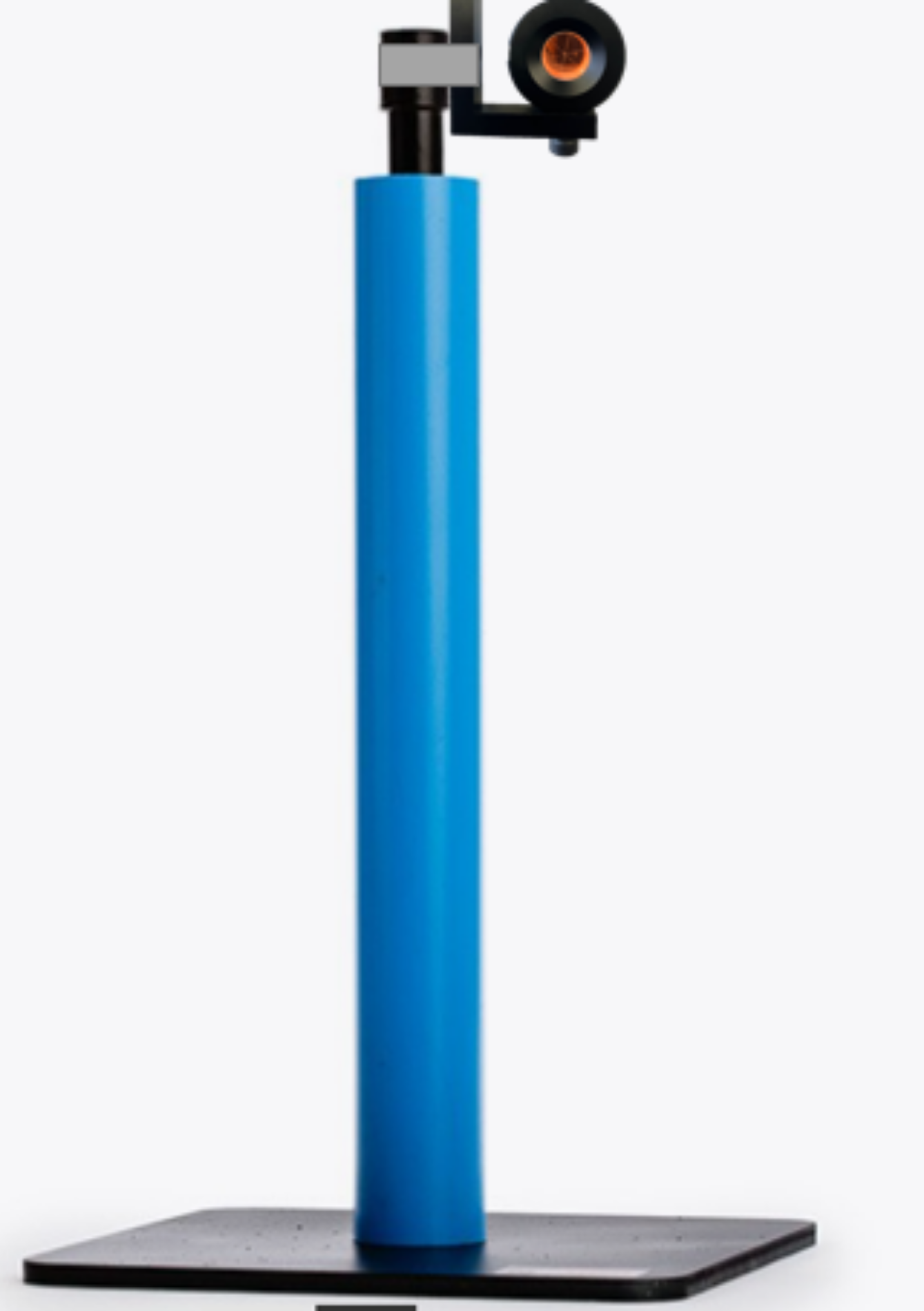

To Monitor a depth of 1m - 1x Plate, 1x Inner Rod, 1x Outer rod and a levelling head will be needed. For additonal depths - add additional inner and outer rods.

• Technical Specification

• Lead time

1 week

• Weight

300mm x 300mm - 10kg each

Collection from local depot only - Please call for options.
