RailSense VoidSense (RTVMD) £4482.24 Detailed Description

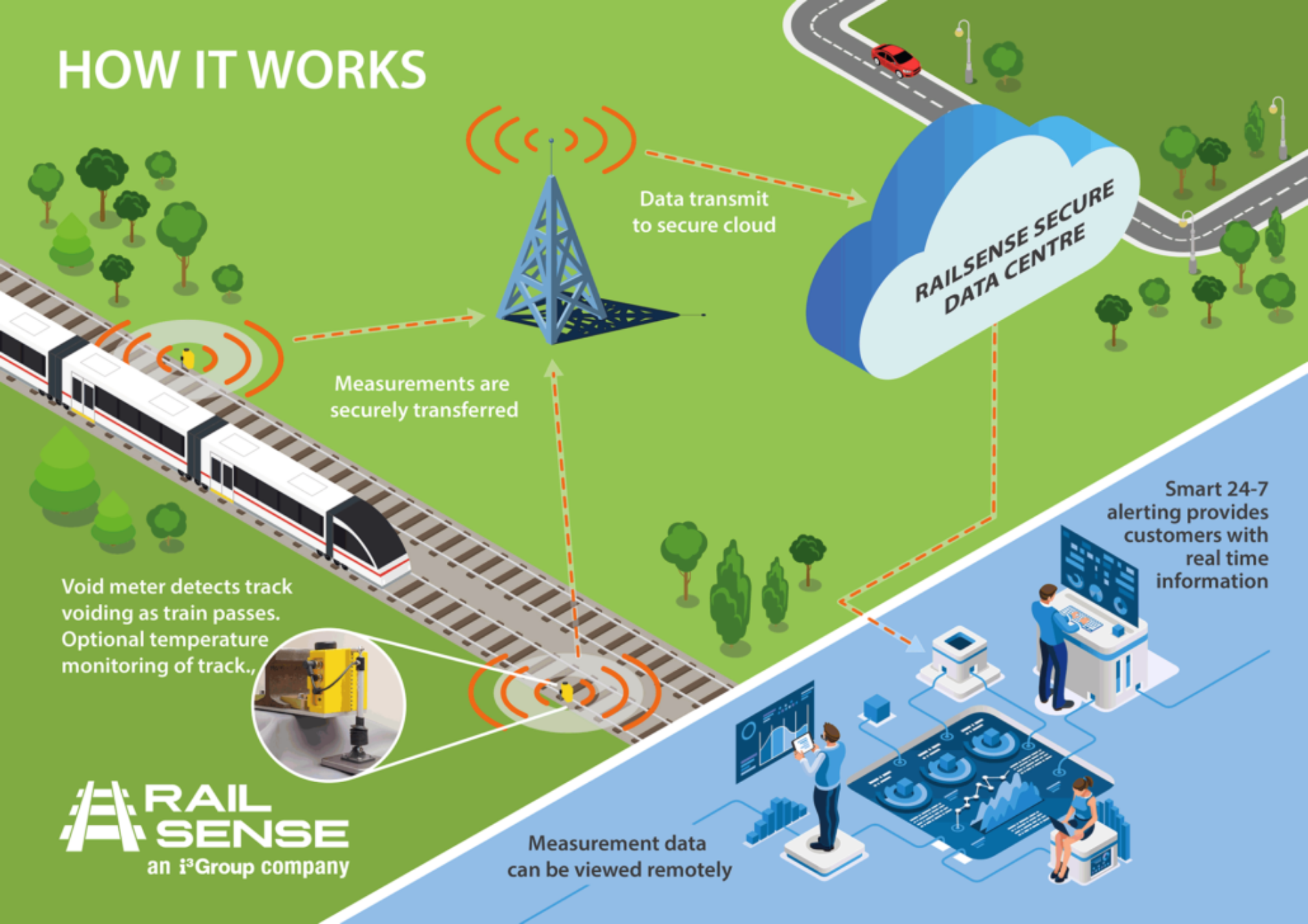

Continuous detection of void conditions provides cost savings during maintenance cycles by allowing voids to be identified long before a settlement or encroachment becomes an issue. The trending of the displacement data enables predictive maintenance, or imposing safe speed limits on the relevant sections of the rail network.
By combining temperature, weather and solar radiation data, RailSense can build a picture and provide analytics to assist in the design and maintenance of the rail network.
The devices are built for zero-maintenance and ultra-low power consumption, backed with solar charging.
The VoidSense measures with a high degree of accuracy.
- Replaces mechanical void measure devices
- Avoids staff on tracks to take and record the readings – saves cost, errors and rise
- Temperature monitor for track to monitor temperature of the rail from –20 to +85 degrees C.
- Intelligently plan train speeds, help prevent buckling, and keep the railway running as reliably as possible with improved passenger safety.
Avialble with longer baseplate for switch and crossings.
Features & Benefits
- VoidSense track sensor array actively measures track movement and temperature
- On-device logging with readings sent real-time to a central server via secure data link
- Measurement data and reports are stored in secure cloud for access anywhere
- Hazardous conditions can be automatically notified via SMS messages or e-mail
- Linear Displacement Sensor-based movement sensing – up to 100mm vertical displacement range with an accuracy of better than 0.2mm
- Battery powered, with solar assistance can provide almost
maintenance free operation - Simple vibration and tamper resistant mounting
- Robust carrier plate that can withstand contact with ballast
- Secure communication of data over mobile data network
On-Board GPS receiver providing location-based measurements - Alarm event transmission (e-mail or SMS)
- Data time stamped & stored locally in the event of comms loss
- Environmental sealing to minimum IP67
- Operational temperature range -20°C to +60°C
- Magnetic temperature sensor for direct attachment to rail
Technical Specification

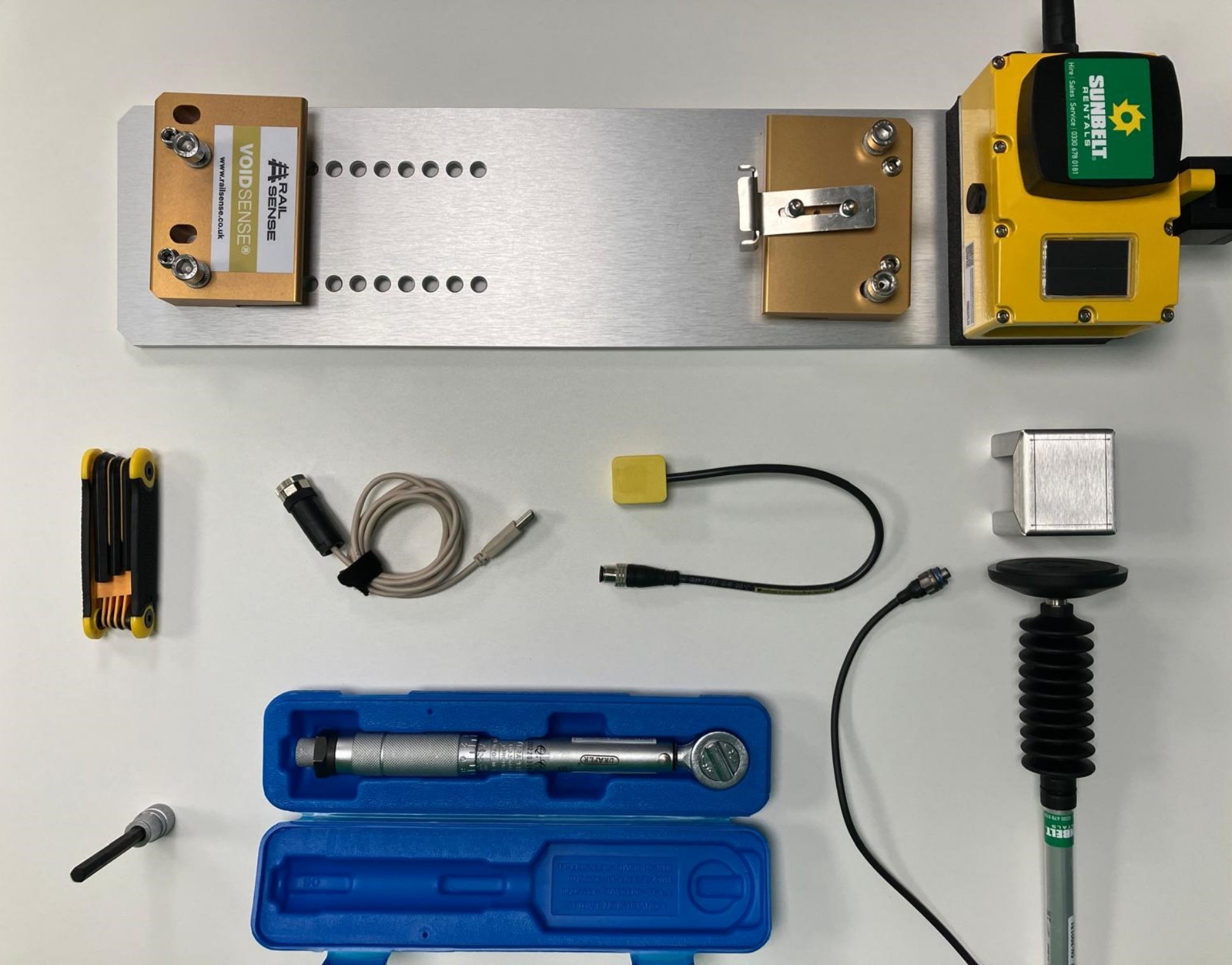

What's In The Box
- RailSense VoidSense Hub with baseplate and "fitting ears"
- Linear Void Sensor
- Magnetic Temperature Sensor
- Installation kit including allen keys, torque wrnech and cube
- USB Charging lead
- Transit link
- Carry case
- 12 months portal and data package
