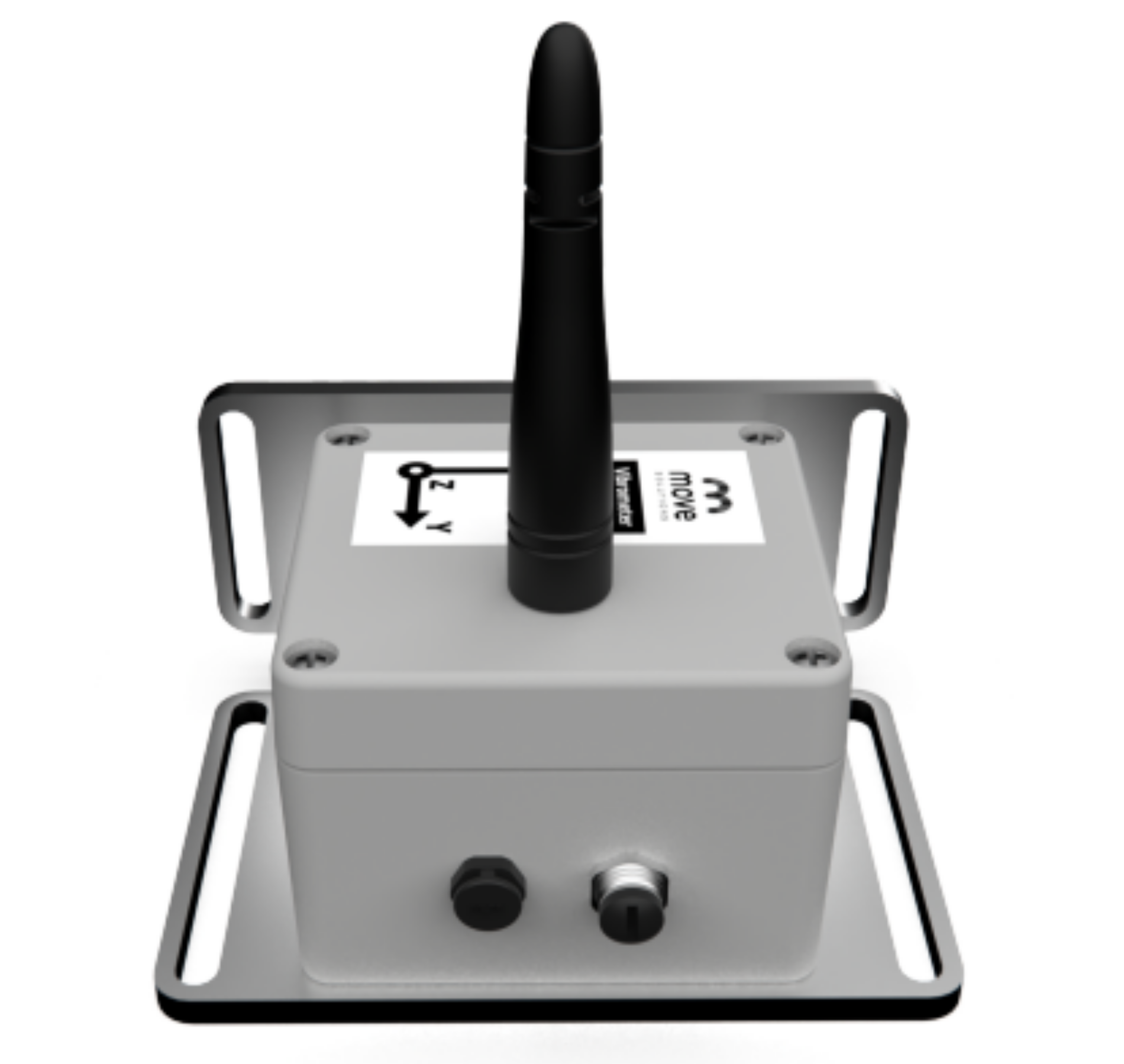

Move Wireless Vibrometer Detailed Description
Understand if the vibrations and stresses caused by construction sites close to the monitored structure exceed the values set by the legislation in force. All sensors also record temperature, are battery powered and use the LoRaWAN wireless communication protocol.
The Vibrometer acquires triaxial velocity data (mm/s or inch/s) through the continuous integration of the onboard accelerometer output, with a high sample rate. The sensor has two main, mutually exclusive, operating modes:
- Programmed acquisition mode
- Threshold acquisition mode

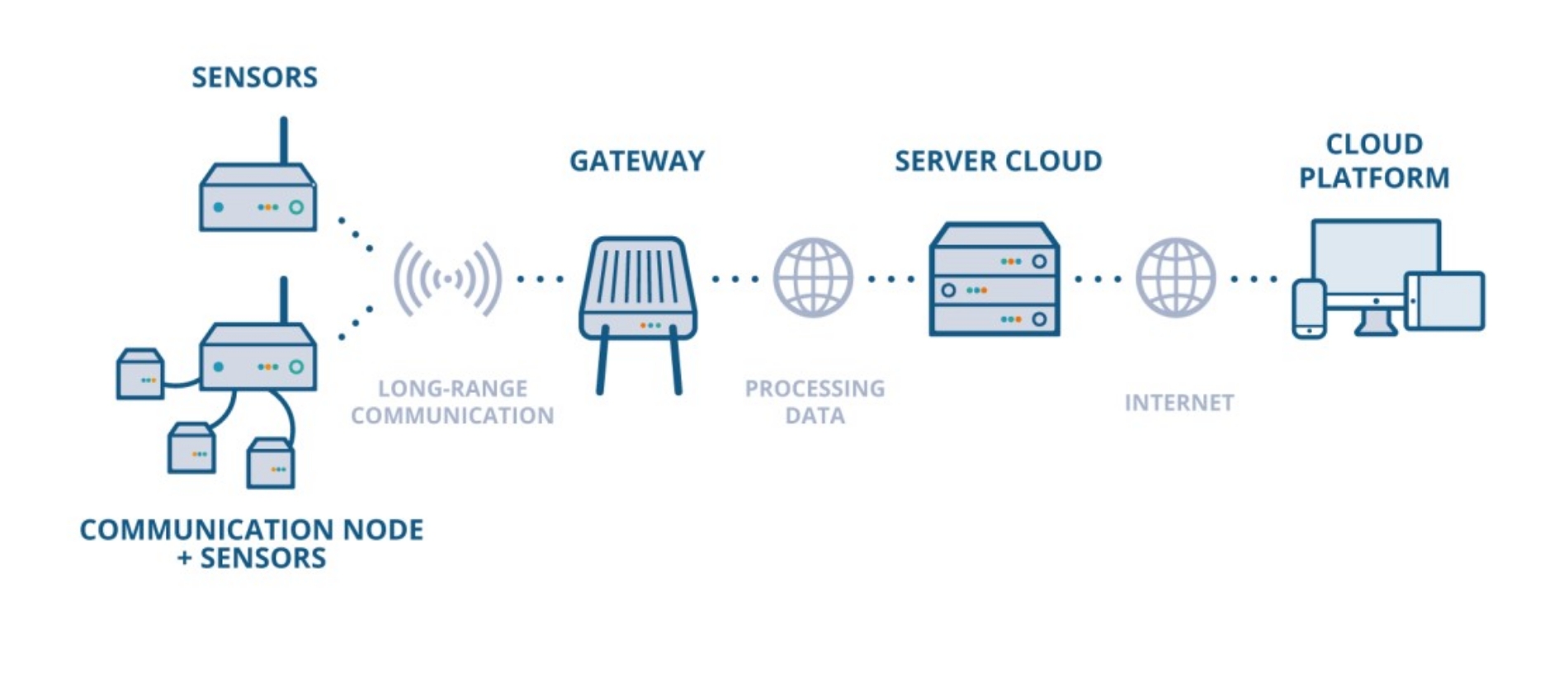

Wireless Vibrometers transmit accurate readings from the site via LoRaWAN. You can view and interact with your data online using the Move Cloud platform.
Vertical structures Monitoring
Performs vibrational analysis of a buildings or vertical structures under maintenance or near a construction site.
Construction sites Monitoring
Monitors the strong vibrations caused by heavy vehicles and machinery on all structures close to a construction site.
Bridge Monitoring
Performs vibrational analysis of a bridge or viaduct under maintenance or near a construction site, monitors if the stresses exceed the regulation.
Features & Benefits
- Triaxial wireless vibrating sensor
- Acquisition of: Velocity, Frequency, Temperature
- Local Storage of up to 2000 acquisitions, one acquisition is composed by 1024 Datapoint. All the acquisitions are also retrievable by USB Connection with a PC.
- Absolute synchronization ±1 second
- Acquisition: Programmed mode
- Resolution 0.0015mm/s
- Range of ± 50 mm/s
- Integrated temperature sensor
- Extremely simple installation with versatile mounting options
- Ultra low noise performance
- Built-in long-life battery
- IP67 waterproof rating
- Easily install the entire system on the structure without the use of wiring.
- Configure all wireless sensors quickly and remotely.
- View real-time measurement data wherever you are, on any device, 24/7.
- Process the data collected through the implemented algorithms.
- Constantly monitors the operating status and signal quality of the system remotely.
- Customize your alarm notifications and receive overrun notifications by email.
- Optionally, you can integrate data on your platform using an MQTT bridge, FTP or through API calls
- Standards DIN4150, UNI9916, BS7385*, SN 640 312a*, RI8507*
- Method - Two-point mounting using screws and plugs.
- Site - Fixing on wall, Fixing on ceiling, Fixing on ground, Fixing underground
- TechnologyMEMS technology - Triaxial.
- Acquisition of - Velocity, Frequency, Temperature.
