Move Wireless Accelerometer SHM Detailed Description
This device is the next and updated version of the Triaxial Acceleration Monitoring sensor. It’s the SHM Accelerometer, an extremely precise three-axis wireless sensor, capable of synchronizing data samples with all the other Accelerometers SHM in the system.
Wireless synchronized sampling is a very important feature that gives many benefits during structural monitoring.
Thanks to this feature it is possible to carry out the Modal and Vibrational Analysis of any type of structure. Sample rates are variable and remotely configurable.
The SHM Accelerometer also maintains the classic activation threshold operation. The battery-powered device has an operating autonomy of up to 8 years and it also has a temperature sensor.

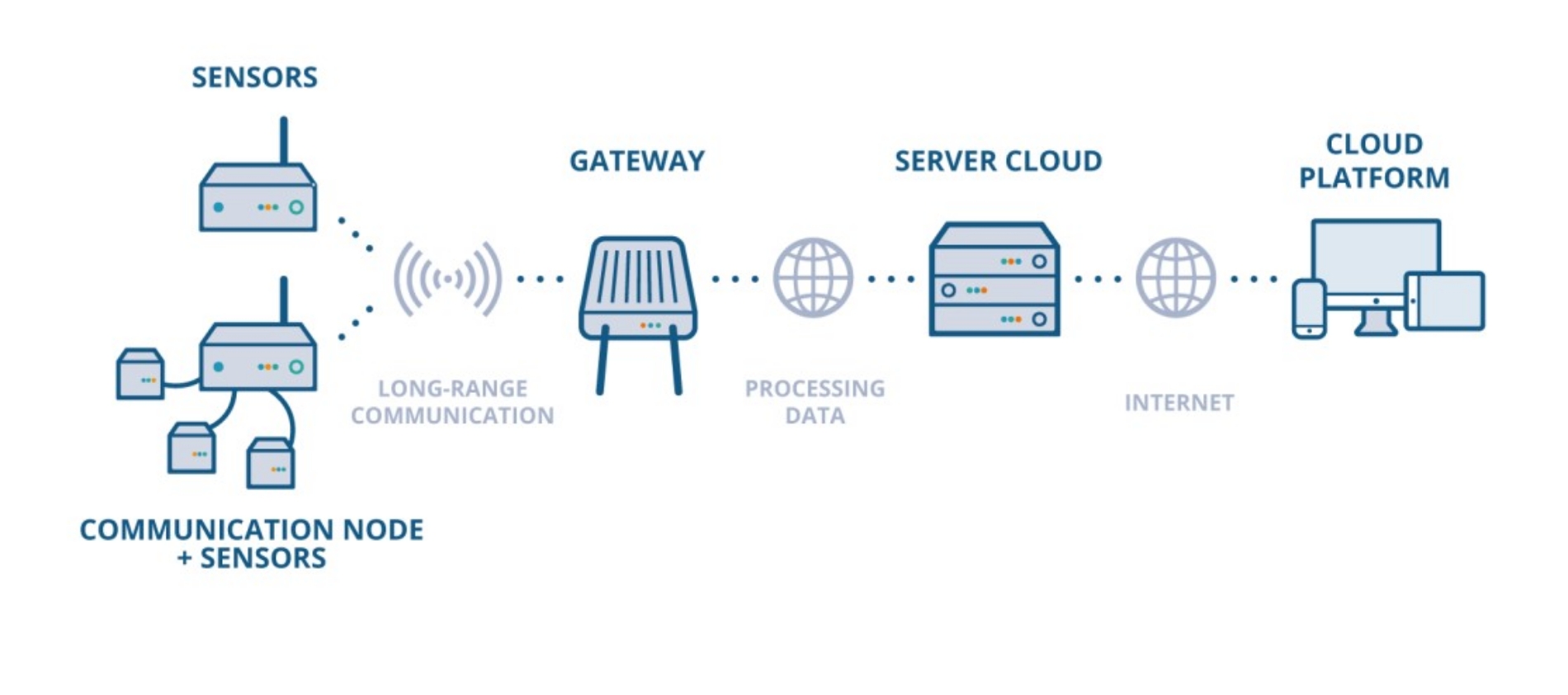

The wireless SHM Accelerometers transmit accurate readings from the site via the LoRaWAN wireless communication protocol via a gateway.
You can view and interact with your data online using the Move Cloud Platform.
Bridge Monitoring
Monitor all the dynamic parameter of a bridge as frequency, modal shape and damping using our synchronized accelerometer.
Dam Monitoring
Monitors the strong vibrations caused by the pressure and flow of water against the structure.
Building Monitoring
Monitor all the accelerations of the building given by environmental causes or constructions. Use our tools to perform modal analysis
Features & Benefits
- Triaxial wireless acceleration sensor.
- Wireless synchronized sampling operation, scheduled sampling operation, trigger operation.
- Relative synchronization 500 μs.
- Activation threshold operation.
- Integrated temperature sensor.
- Extremely simple installation with versatile mounting options.
- Ultra low noise performance.
- Resolution of 15bit (31.25μg, 62.5μg, 125μg), accuracy of ± 62.5 μg and range ± 0.512g, ± 1.024g, ± 2.048g.
- Built-in long-life battery.
- IP67 waterproof rating.
- Firmware is remotely upgradeable over the air via the gateway, reducing costly site visits.
- Easily install the entire system on the structure without the use of wiring.
- Configure all wireless sensors quickly and remotely.
- View real-time measurement data wherever you are, on any device, 24/7.
- Process the data collected through the implemented algorithms.
- Constantly monitors the operating status and signal quality of the system remotely.
- Customize your alarm notifications and receive overrun notifications by email.
- Optionally, you can integrate data on your platform using an MQTT bridge, FTP or through API calls.
Technical Specification
What's In The Box
