Move Deck Device - Dynamic Displacement Sensor Detailed Description
On each sensor, a threshold can be set remotely via the Move Cloud Platform. Each sensor continuously samples the oscillation amplitude and, if this threshold is exceeded, then the sensor records and transmits the 10 seconds before and the 20 seconds after the event. It is full wireless, and the battery can last for eight years.

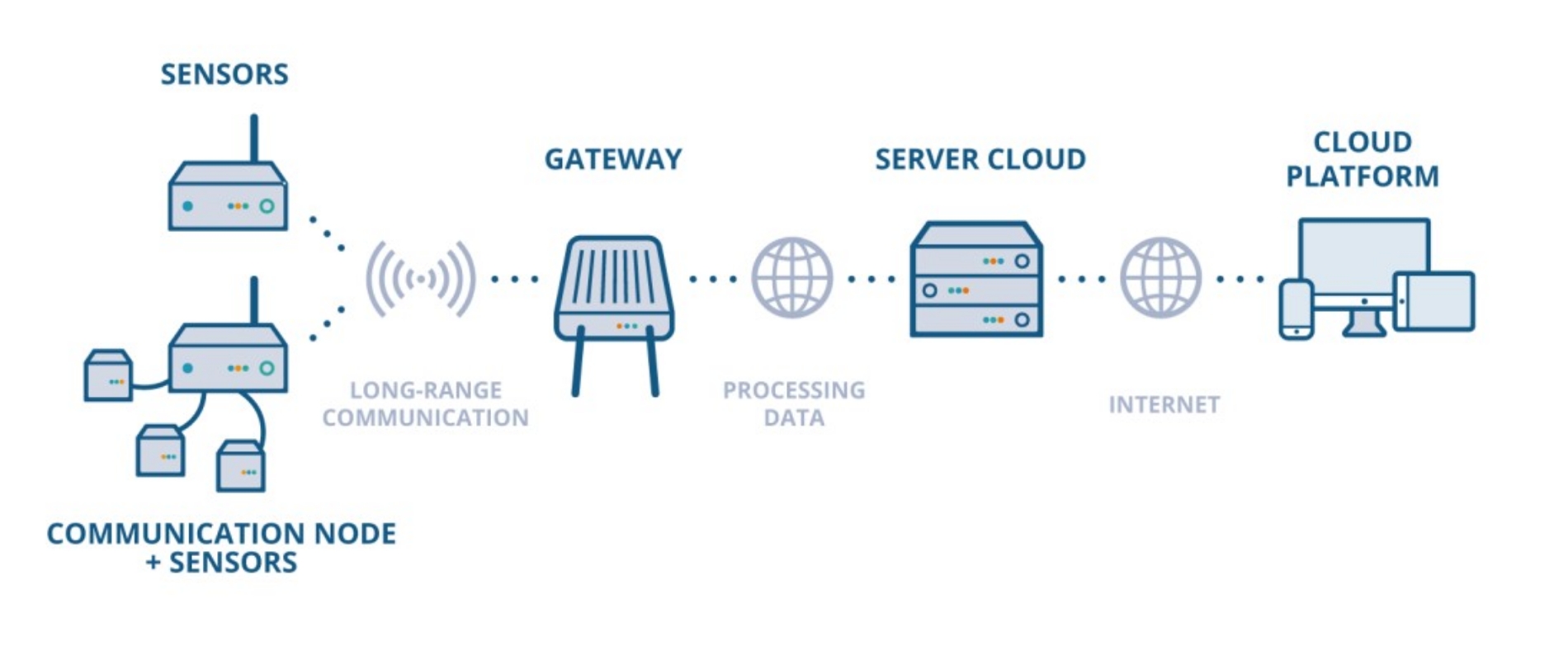

It also mounts a temperature sensor. The Deck sensor transmits accurate readings from the site via the LoRaWAN wireless communication protocol via a Gateway.
You can view and interact with your data online using the Move Cloud Platform. There are multiple data processing and correlation algorithms developed by Move. Ideal for dynamic monitoring of large structures like bridges and overpasses.
Railways Monitoring
Monitor the ground displacement (settlement or lateral movement) and correlates the amplitude of oscillation of the sleepers with the variation of the ballast.
Bridge Monitoring
Detect vibration trends as displacement (mm), each event is processed with the FFT algorithm (Fast Fourier Transform), used to calculate the frequency response of the oscillations more quickly.
Operation with programmed acquisitions: | Record of an event for each oscillation that exceeds the activation threshold set by the user. For each event: acquisition of displacement for 30 seconds (10 seconds before and 20 seconds after exceeding the threshold). Acquisition of the temperature at each event. |
Custom Operation Software: | It is possible to request custom features that the customer deems necessary for their business. |
Sampling Frequency: | 50 Hz |
Features & Benefits
- Wireless dynamic displacement sensor.
- Uniaxial measurements parallel to the gravitational axis (Z) or to the perpendicular axis (X or Y).
- Integrated temperature sensor.
- Ultra low noise performance.
- Resolution of 0.012mm, 0.024mm; Shift Accuracy ±0,01 mm and range ± 1.5 mm, ± 3mm.
- Built-in long-life battery.
- Waterproof rating IP67.
- Easily install the entire system on the structure without the use of wiring.
- Configure all wireless sensors quickly and remotely.
- View real-time measurement data wherever you are, on any device, 24/7.
- Process the data collected through the implemented algorithms.
- Constantly monitors the operating status and signal quality of the system remotely.
- Customize your alarm notifications and receive overrun notifications by email.
- Optionally, you can integrate data on your platform using an MQTT bridge, FTP or through API calls.
Technical Specification
What's In The Box
Related products

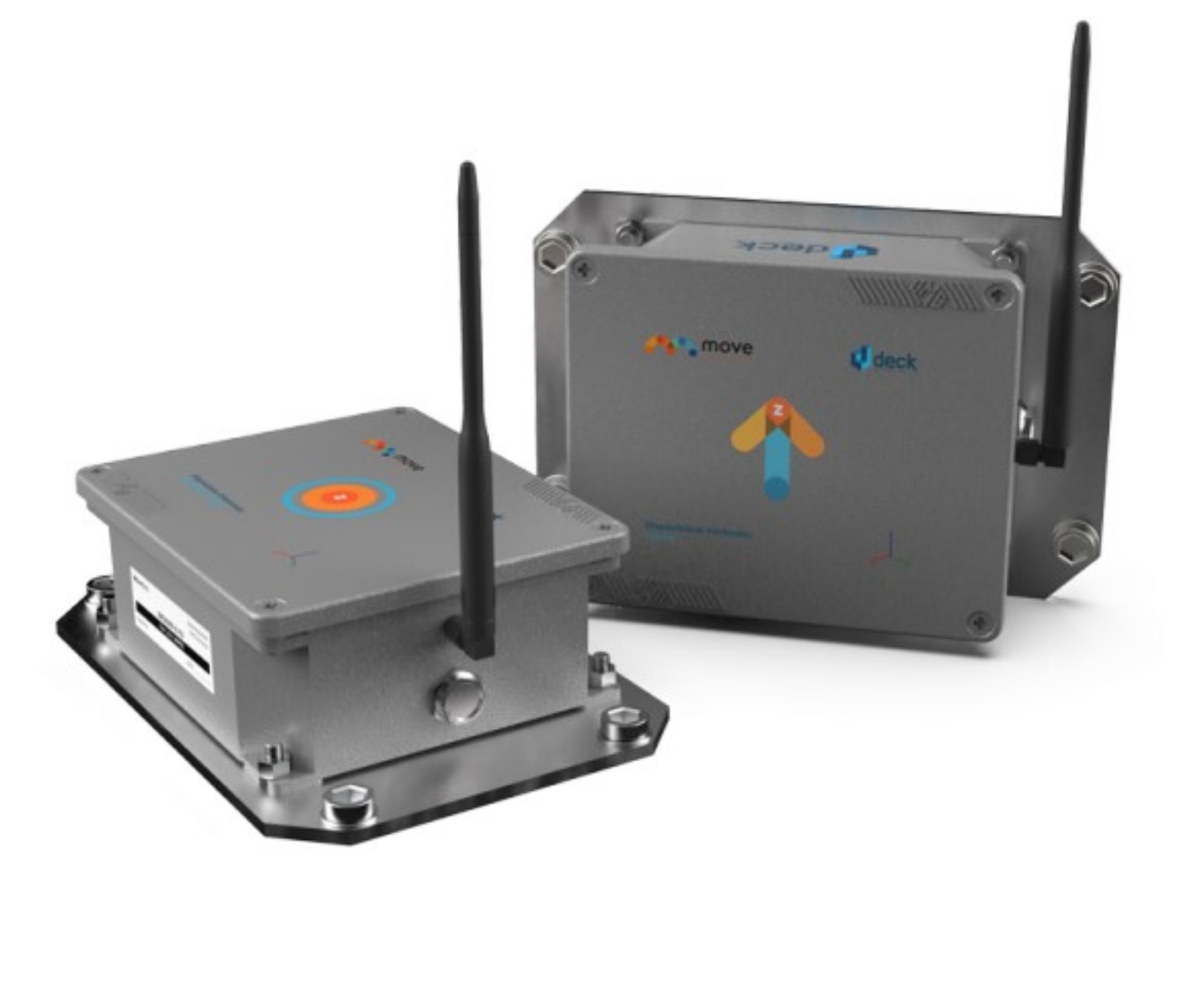

In stockThe Deck device is a wireless sensor that allows measuring the dynamic amplitude of the displacement with an accuracy of 0.01 mm and the vibration frequency (through an FFT algorithm) of any structure on which it is applied.
