Detailed Description

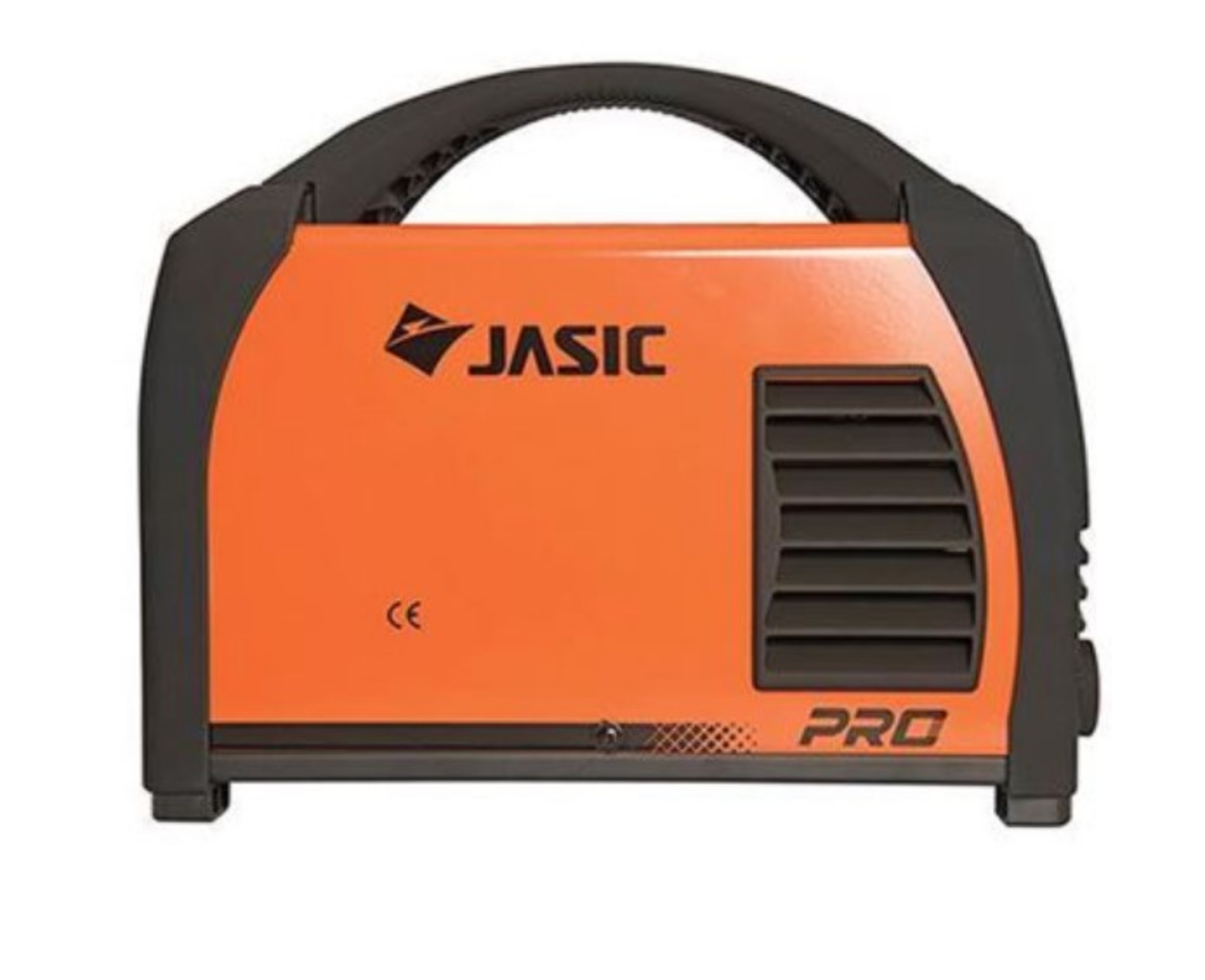

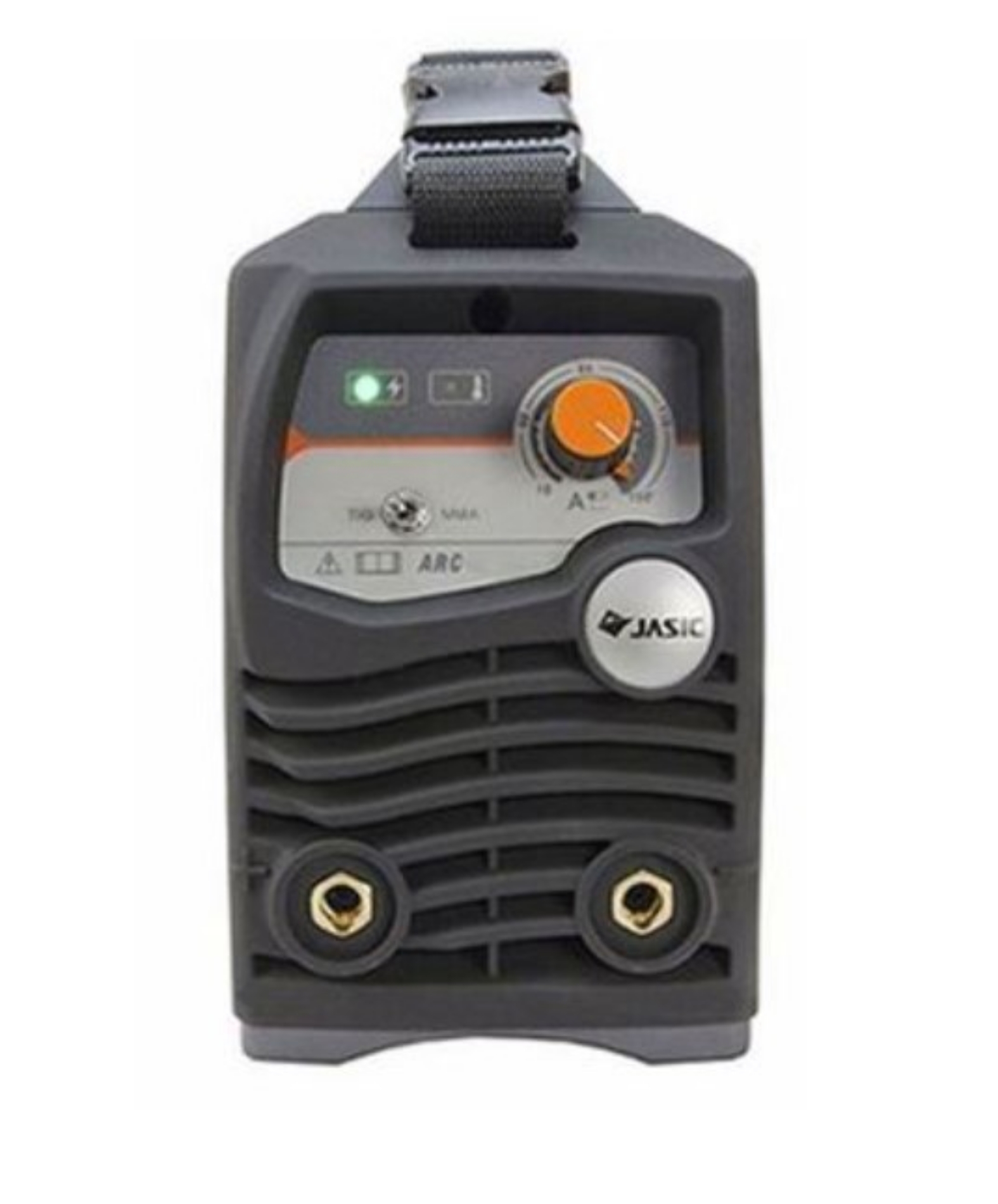

The Jasic Arc 160 MMA wide voltage welding inverter is equipped with the latest IGBT technology and a singlular PCB for improved efficiency and maintenance.
This technologically advanced PFC inverter provides energy saving benefits and offers reliable and consistent arc performance.
The Jasic Pro Arc 160 is a durable and compact inverter weighing only 4.7Kg.
Jasic is an international developer, manufacturer and supplier of welding inverters and integrated welding solutions that represent value, reliability, durability and innovation.
Features & Benefits
- IGBT inverter technology - for the professional user
- MMA/DC Lift TIG
- Wide input voltage 95-265V
- Hot start ignition, anti stick
- 33 Khz inverter frequency, high-efficiency
- Self adaptive arc force
- Compact size, lightweight and modern design
- Heavy duty 35-50mm dinse sockets
- Easy arc starting, minimal spatter
- Stable and reliable arc
- Auto-compensation for voltage fluctuation
- Advanced single PCB construction
- Can weld electrodes of up to 4mm
- Generator friendly
Technical Specification
Length (mm)
365
Width (mm)
135
Height (mm)
280
Weight (kg)
6.4
Input Voltage
95-265V - AC 50/60Hz
leff (A)
17.5 (115V) / 11.6 (230V)
Input Power (kVA)
3.7 (115V) / 5 (230V)
Current Range (A)
10-125 (115V) / 10-160 (230V)
Duty Cycle @ 40°C
125A @ 35% (115V) / 160A @ 35% (230V)
No-Load Voltage (V)
68
Power Factor
0.99
Protection/Insulation Class
IP21/F
Efficiency (%)
85
What's In The Box
![](https://static.wixstatic.com/media/fc2fb8_d545b8aecfc1454c8317105c607fec74~mv2.png/v1/fill/w_66,h_66,al_c,q_85,usm_0.33_1.00_0.00,enc_auto/fc2fb8_d545b8aecfc1454c8317105c607fec74~mv2.png)
Inverter power source, Operating instructions.
![](https://static.wixstatic.com/media/fc2fb8_a4f113b5577a4b99b537cb919cde75f2~mv2.png/v1/fill/w_65,h_63,al_c,q_85,usm_0.33_1.00_0.00,enc_auto/fc2fb8_a4f113b5577a4b99b537cb919cde75f2~mv2.png)
MMA Leads, Mains plug, TIG torch & adaptor, TIG consumables, MMA Electrodes, Shielding gas, Filler wire,
PPE (Welding helmet, gloves, etc)
