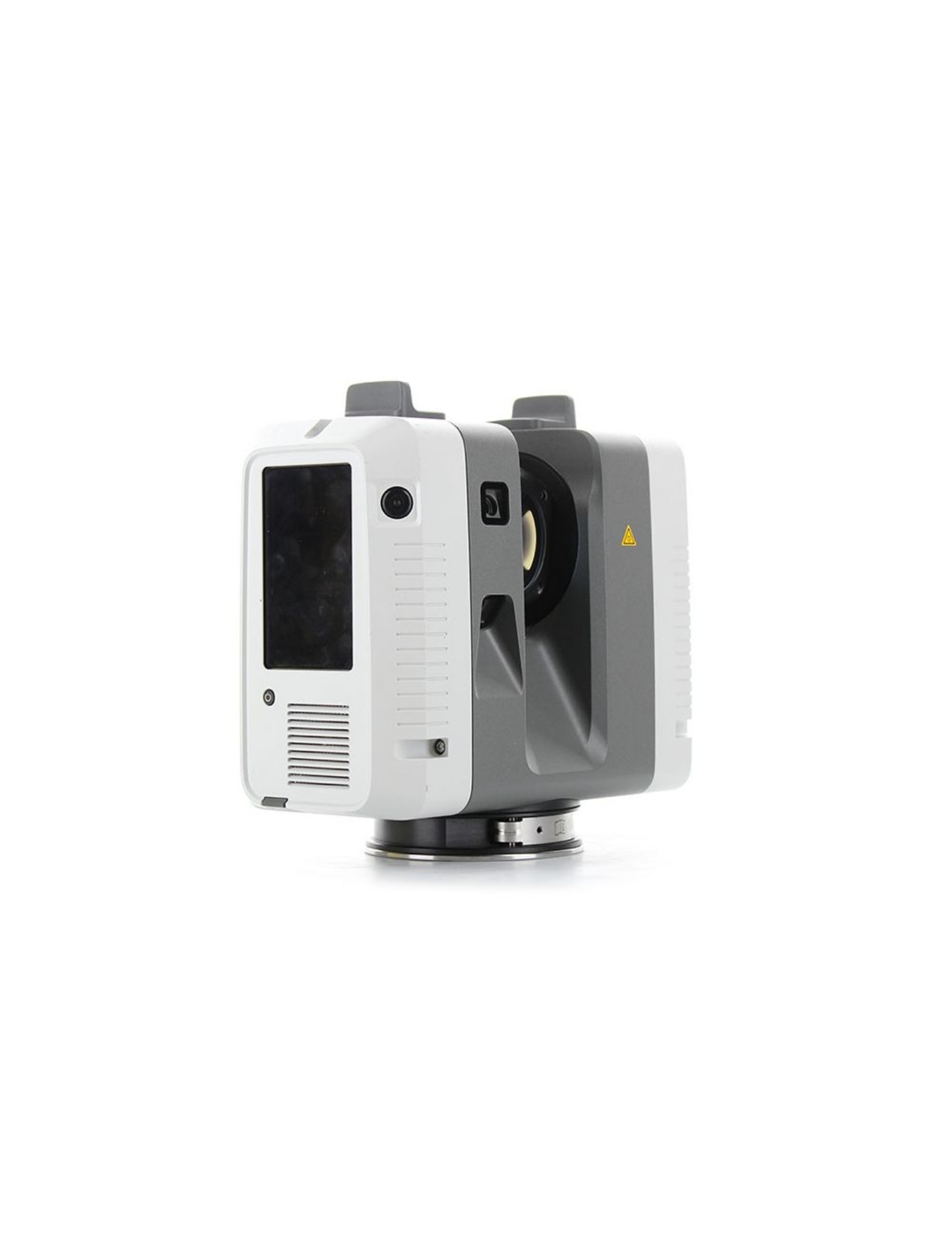

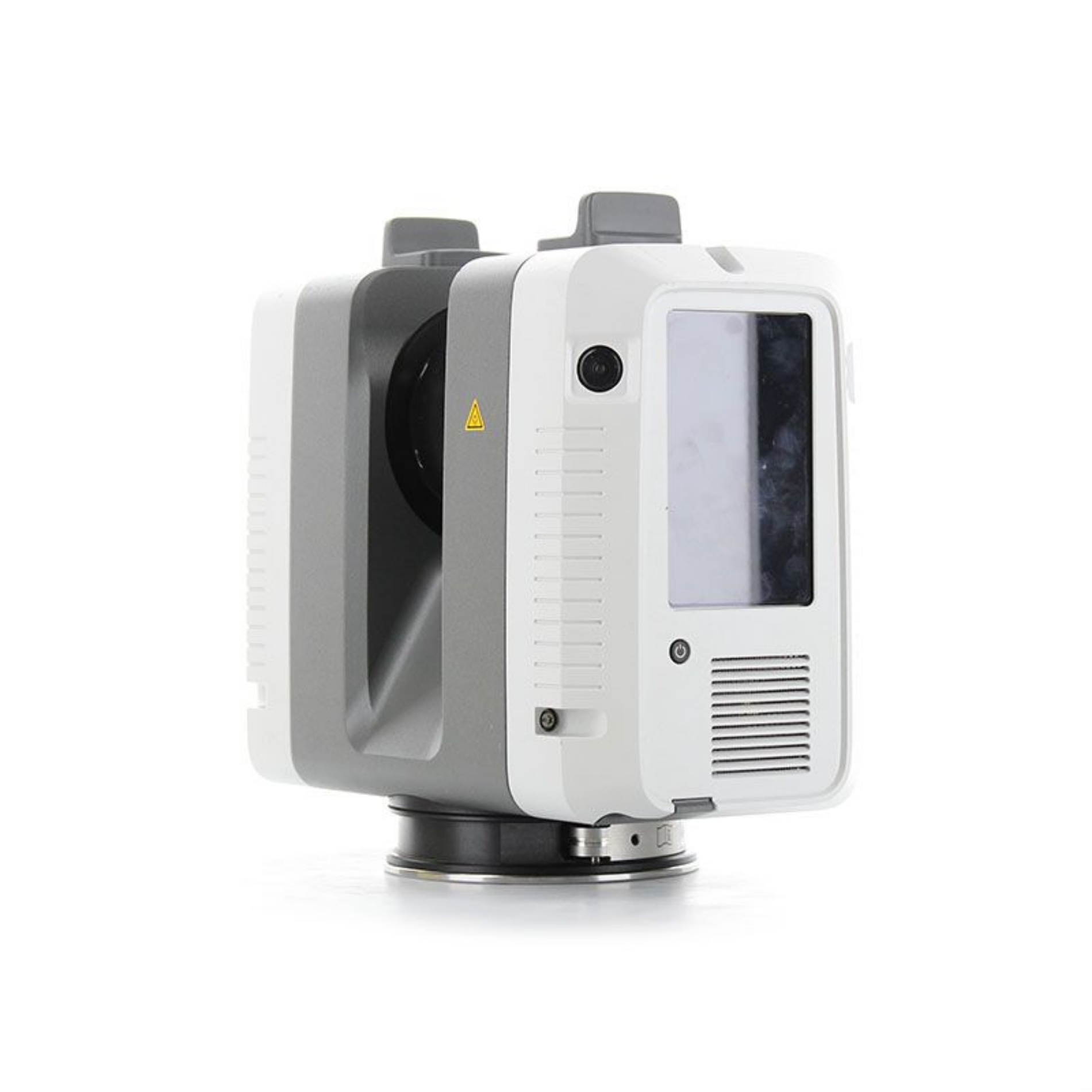

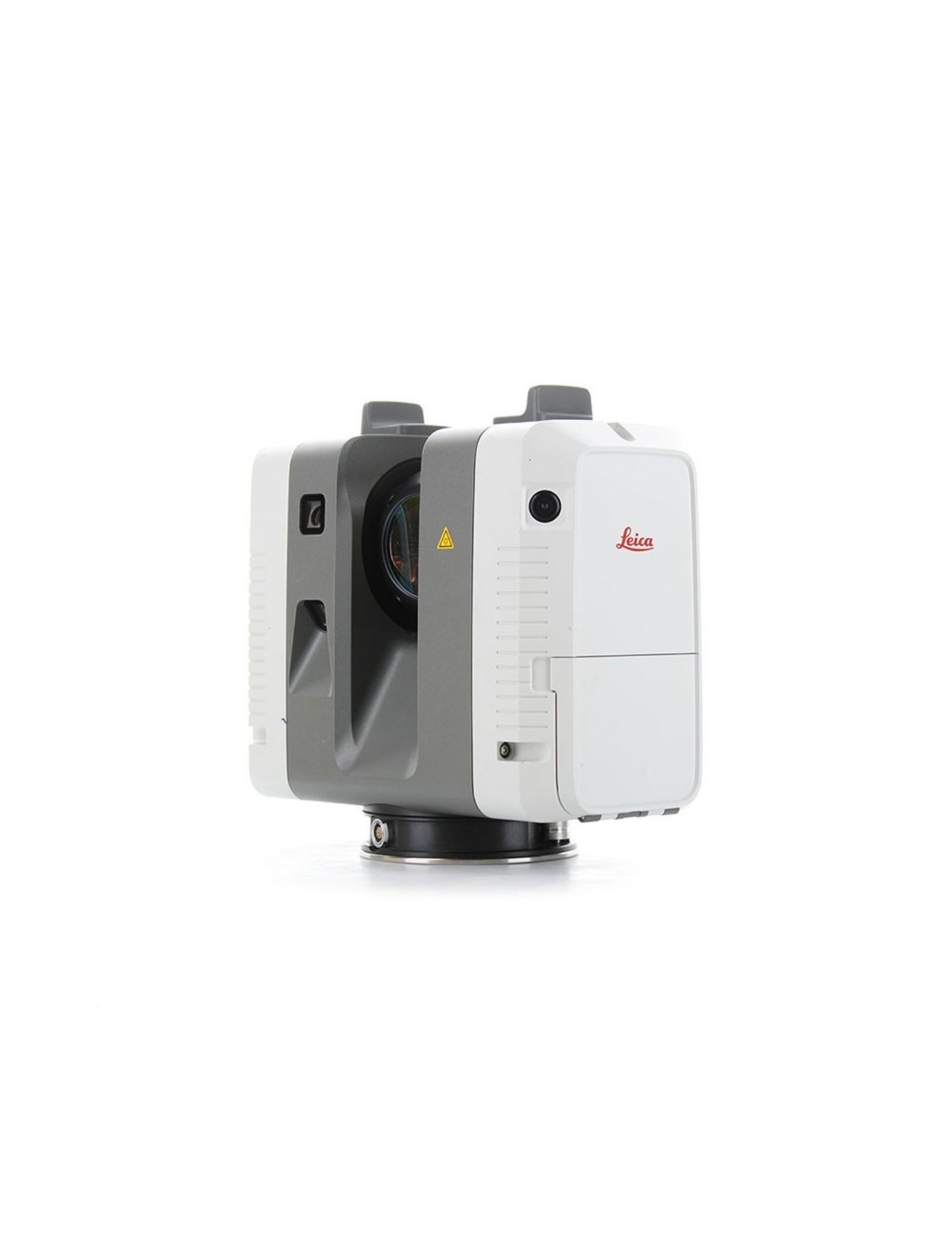

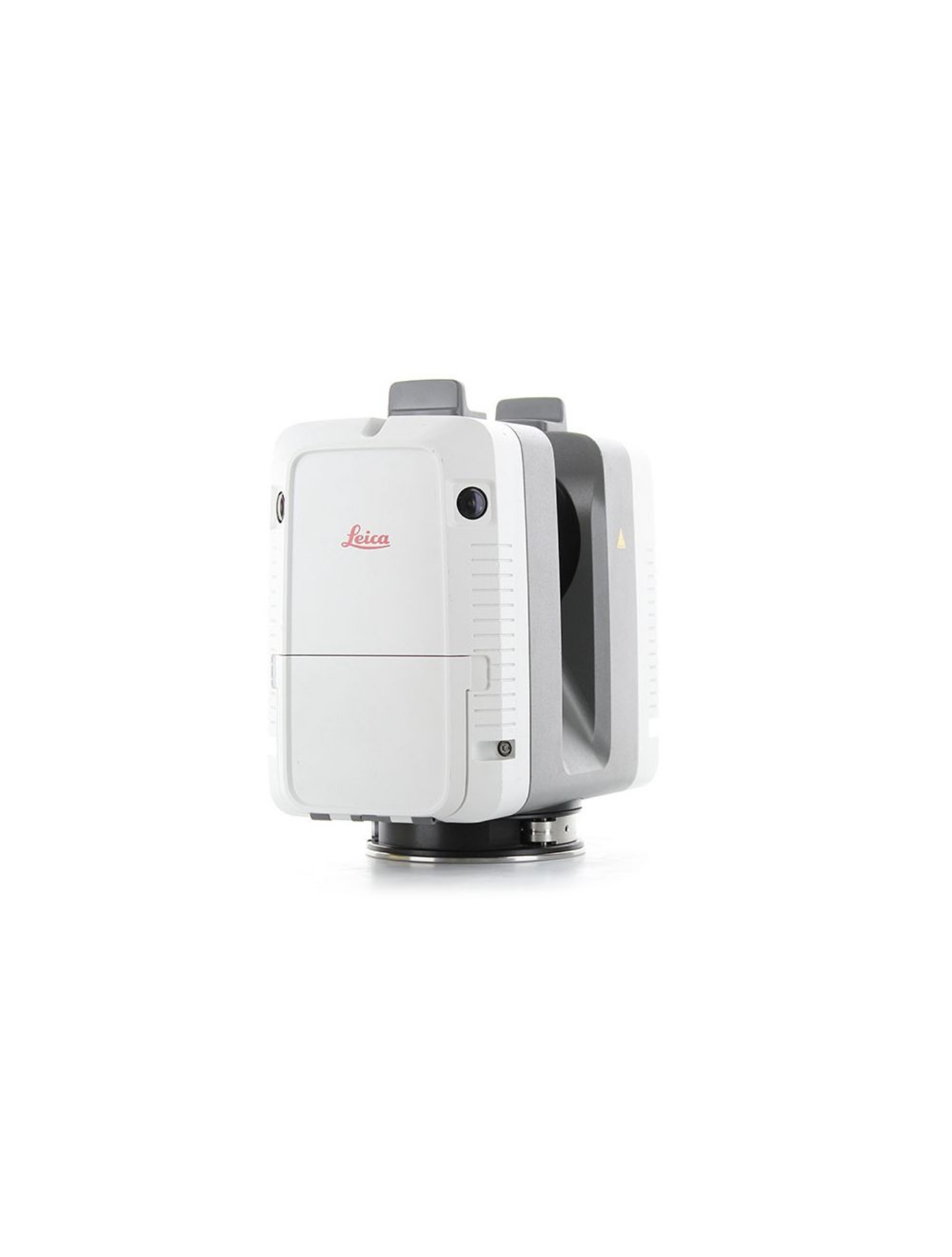

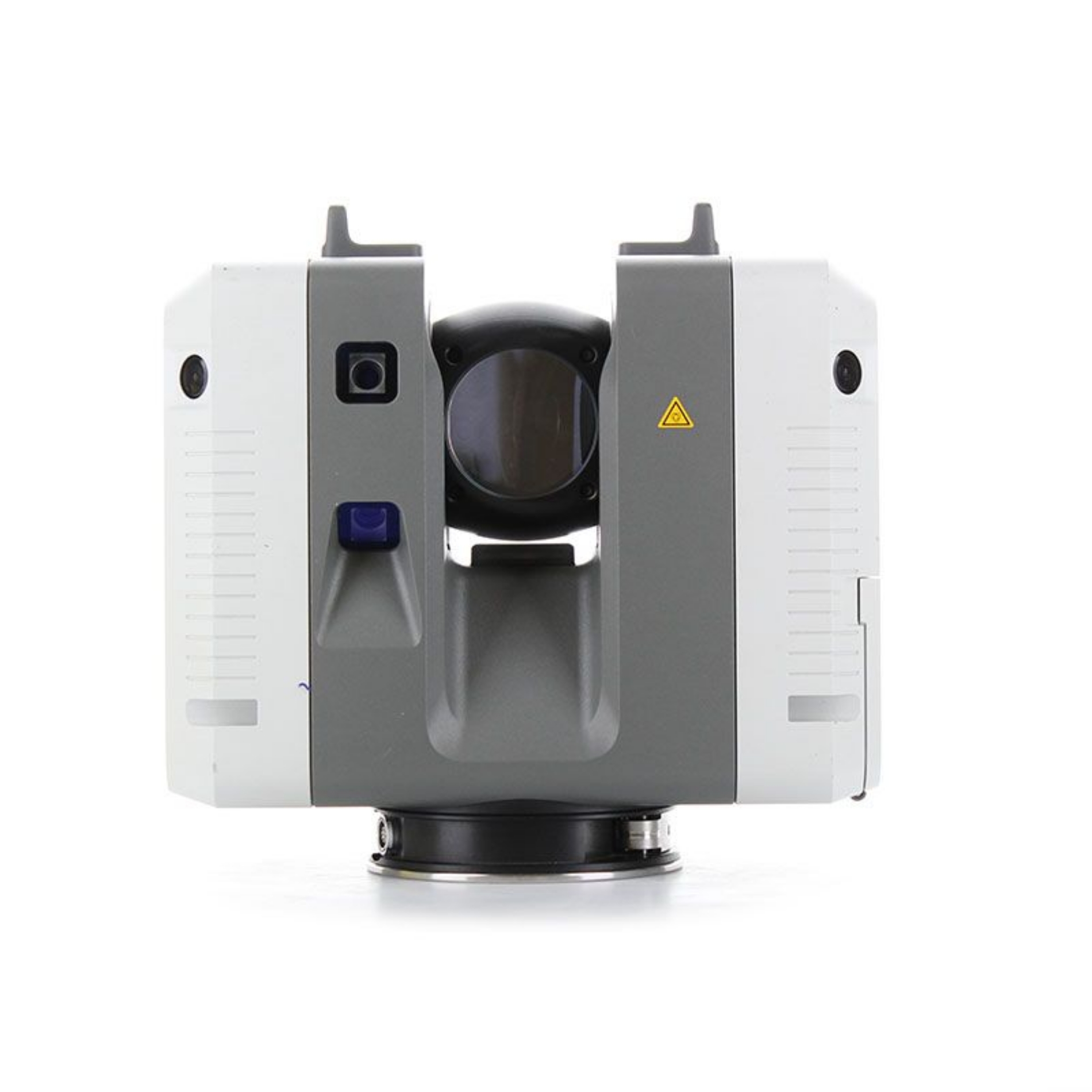

Ex Hire Fleet - Leica RTC360 3D Laser Scanner

3D Laser Scanner

High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration

Data acquisition

< 2 min for complete full dome scan and spherical HDR image at 6mm @ 10m resolution

Real time registration

Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit

Double scan

Automatic removal of moving objects

Distance measurement

High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology

Laser Class

1 (in accordance with IEC 60825-1:2014), 1550nm (invisible)

Field of view

360° (horizontal) / 300° (vertical)

Range

Min. 0.5 - up to 130 m

Speed

Up to 2‘000‘000 pts / sec

Resolution

3 user selectable settings (3/6/12mm @ 10m)

Accuracy

Angular accuracy 18”
Range accuracy 1.0 mm + 10 ppm
3D point accuracy
1.9 mm @ 10 m
2.9 mm @ 20 m
5.3 mm @ 40 m

Range noise

0.4 mm @ 10 m, 0.5 mm @ 20 m

Camera

36 MP 3-camera system captures
432 MPx raw data for calibrated
360° x 300° spherical image

Speed

1 minute for full spherical HDR image at any light condition

HDR

Automatic, 5 brackets

Visual Inertial System

Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time

Tilt

IMU based, Accuracy: 3‘ for any tilt

Additional sensors

Altimeter, Compass, GNSS

On scanner

Touch-screen control with finger touch, full colour WVGA graphic display 480 x 800 pixels

Mobile devices

Leica Cyclone FIELD 360 app for iPad or Android tablets including:
- Remote control of scan functions
- 2D & 3D data viewing
- Tagging
- Automatic alignment of scans

Wireless

Integrated wireless LAN (802.11 b/g/n)

Data storage

Leica MS256, 256GB exchangeable USB 3.0 flash drive

Housing

Aluminium frame and sidecovers

Dimensions

120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1

Weight

5.35 kg / 11.7 lbs, nominal (w/o batteries)

Mounting mechanism

Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available

Internal battery

2 x Leica GEB361 internal, rechargeable Li-Ion batteries.
Duration: Typically up to 4 hours
Weight: 340 g per battery

External

Leica GEV282 AC adapter

Operating temperature

5° to +40° C

Storage temperature

40° to +70° C

Dust/Humidity

Solid particle/liquid ingress protection IP54
