Abtus ABT7100 Track Geometry Trolley £23400.00 Detailed Description

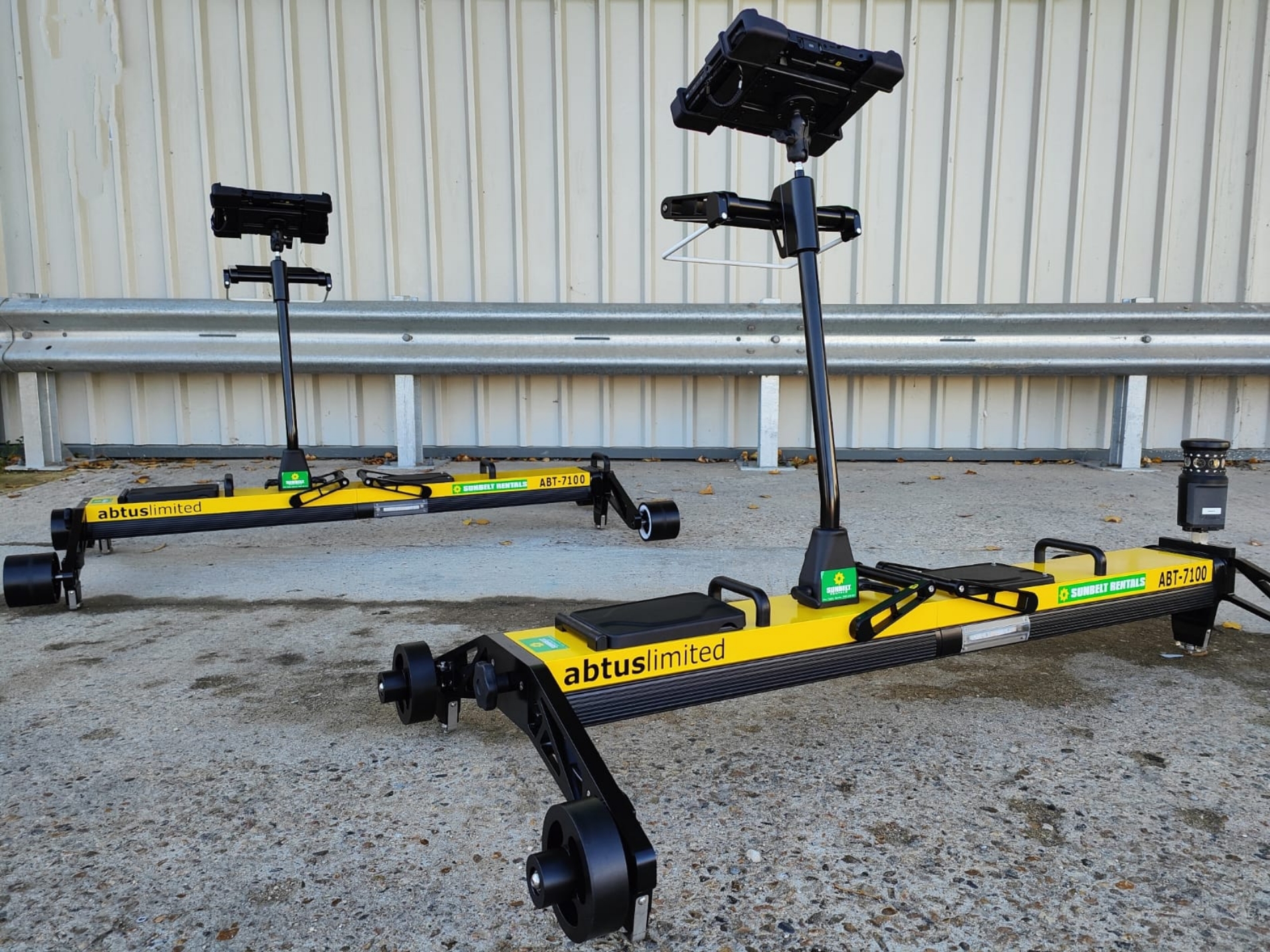

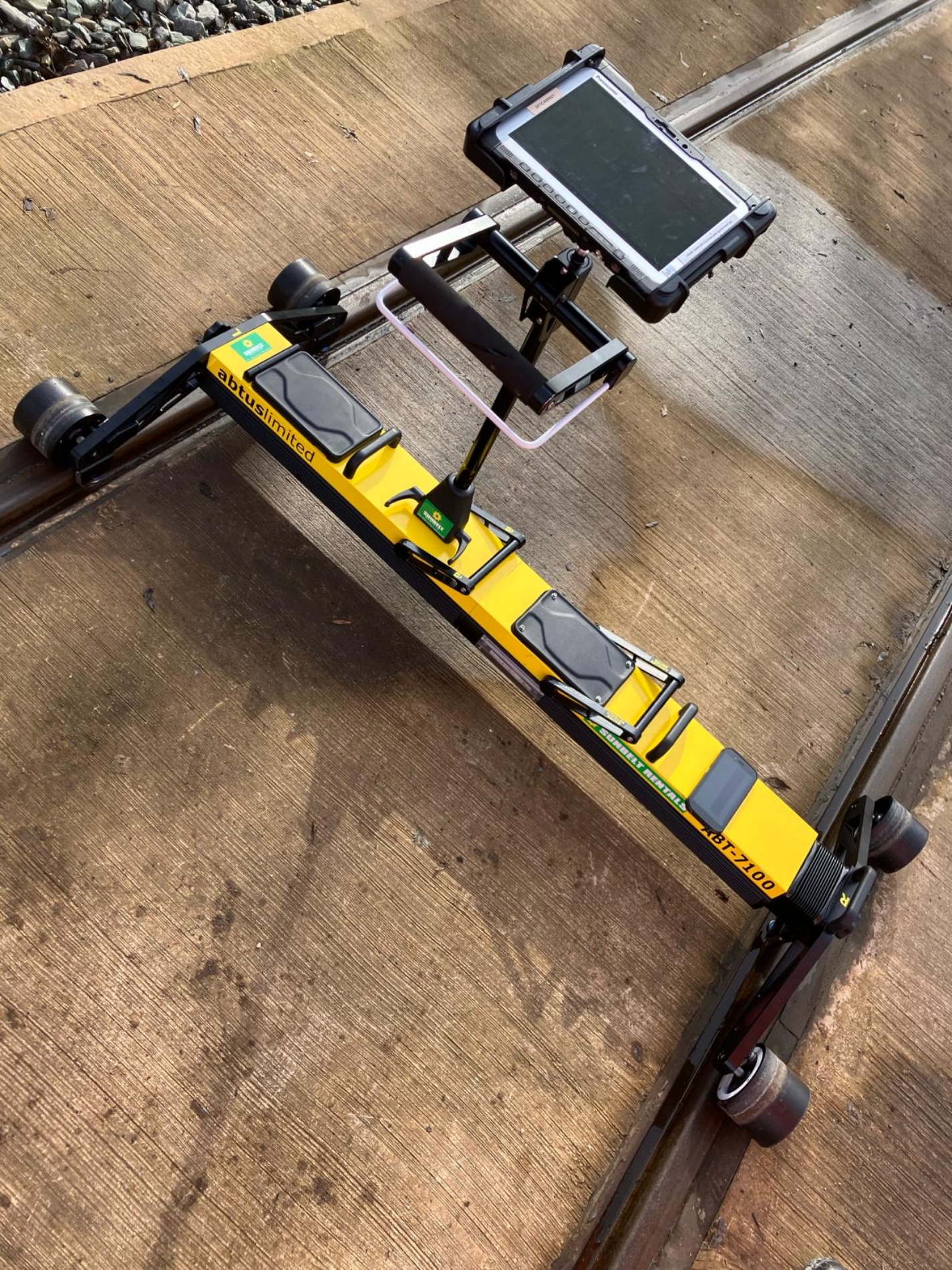

The Abtus ABT7100 Track Geometry Trolley is a measuring device which records rail track geometry.
Track geometry data is collected at normal walking speed. The Abtus software allows the user to set a wide range of measurement parameters and tolerance profiles, helping to quickly and accurately flag ‘out of specification’ recordings.
- Displayed numerically/graphically, in real-time, on a tablet
- Records Distance, Super Elevation, Gauge and Twist
- Data can be transferred easily to a PC via USB key in .CSV file format
- User-defined measurement parameters
- Easy and fast to assemble
- With padded carry bags
- Requires one operator only and can be used without track possession (where local standards allow)
Features & Benefits
- Displayed numerically/graphically, in real-time, on a tablet
- Records Distance, Super Elevation, Gauge and Twist
- Data can be transferred easily to a PC via USB key in .CSV file format
- User-defined measurement parameters
- Easy and fast to assemble
- With padded carry bags
- Requires one operator only and can be used without track possession (where local standards allow)
- 12 hours battery life, 6 hours for tablet
- 1700mm x 1000mm x 720mm
- 25kg
- IP65
Technical Specification
Document Download
Documentation File Format Size
What's In The Box
ABT7100 Track Geometry Trolley
Left hand Chasis and wheel set
Right hand chasis and wheel set
7100 Battery and Charger
Brake handle assemble
Panasonic FZ-G2 Toughbook, charger, bracket and mount
